Ovron Motor
Ovron Motor

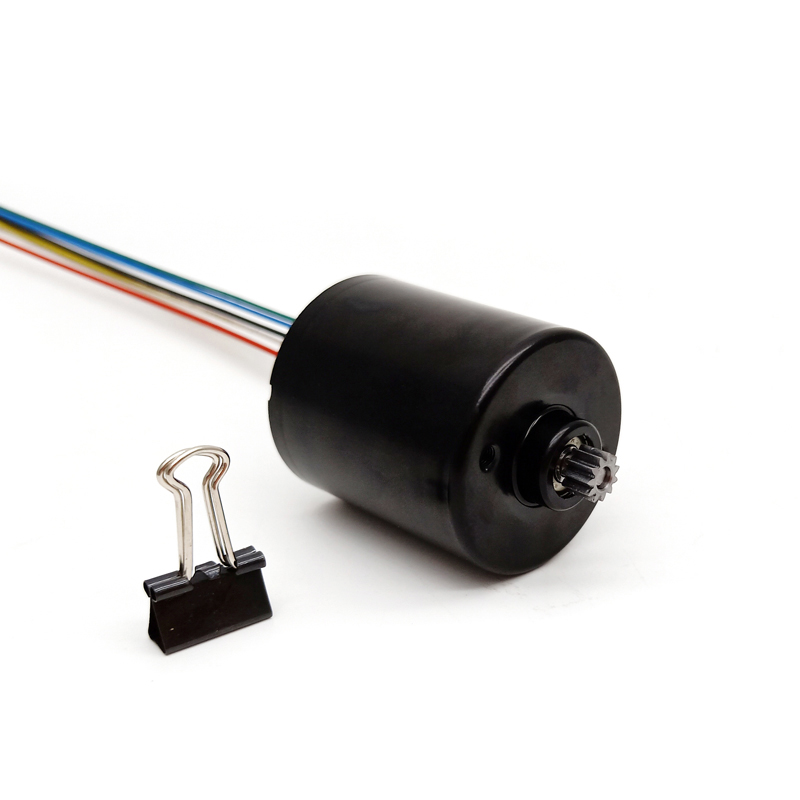

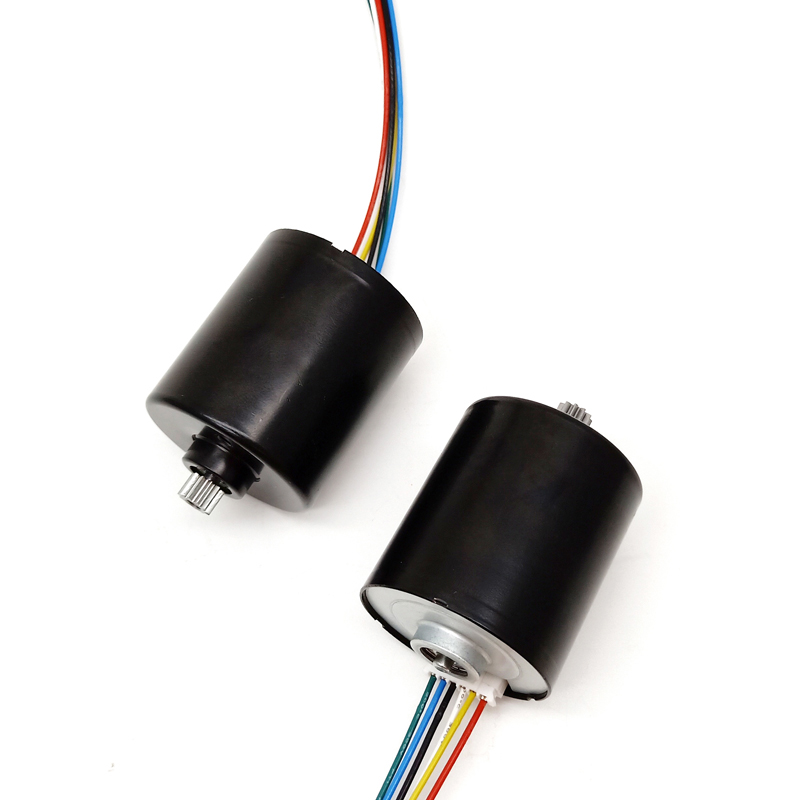

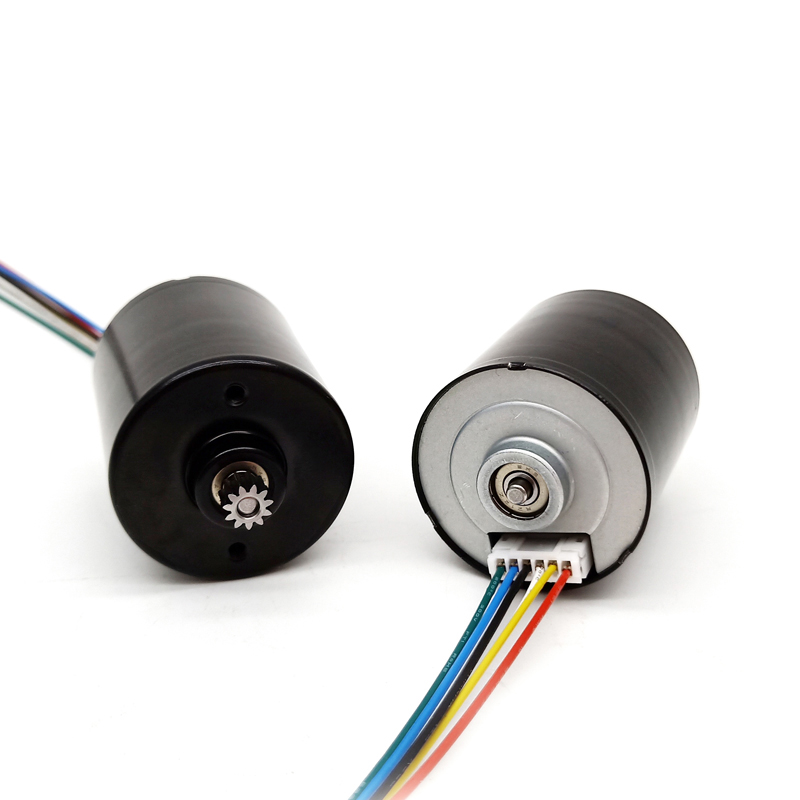

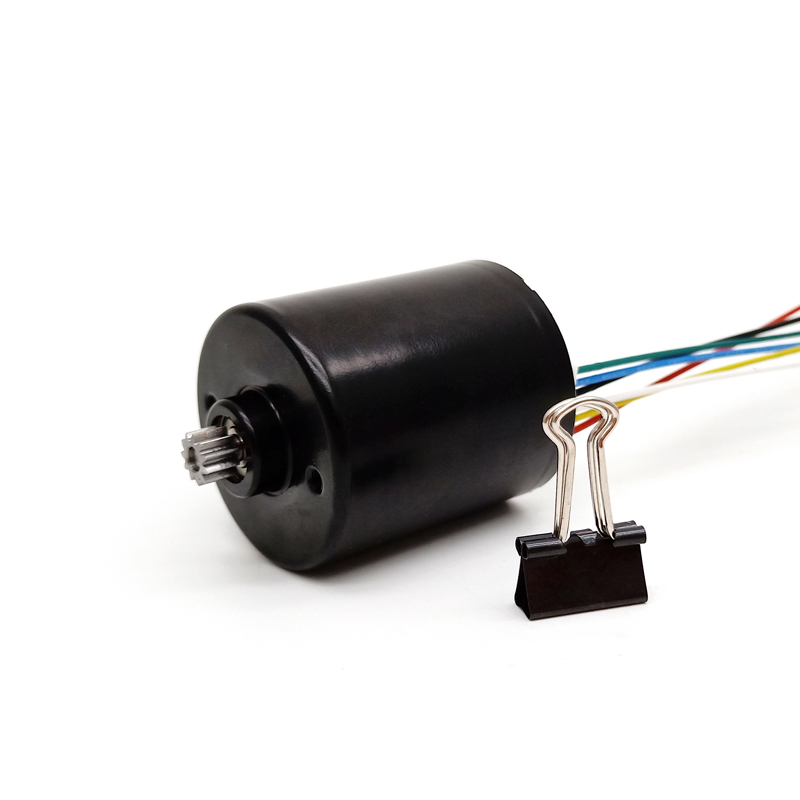

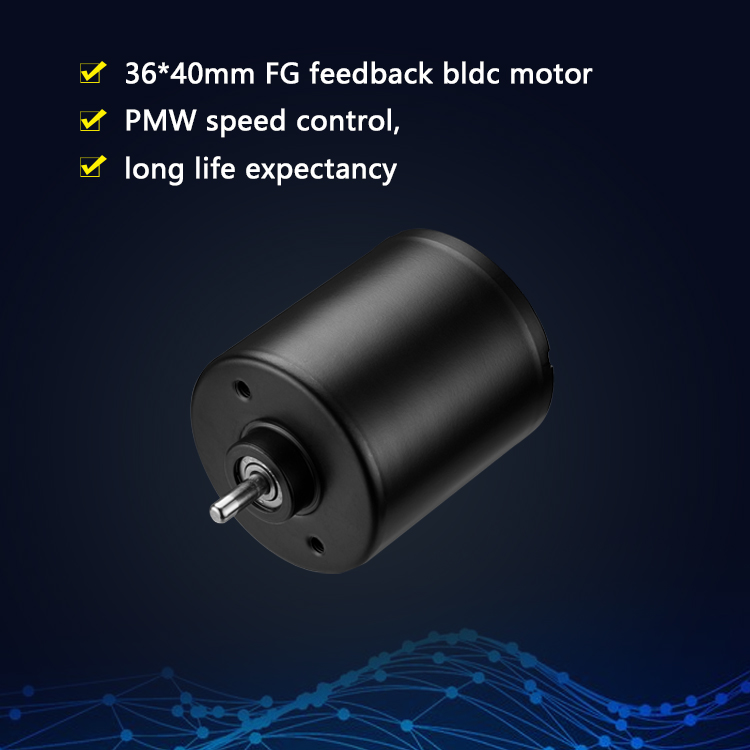

High-performance 36mm brushless motor solution designed for precision and durability.
Our motors are widely integrated into various automated systems:
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

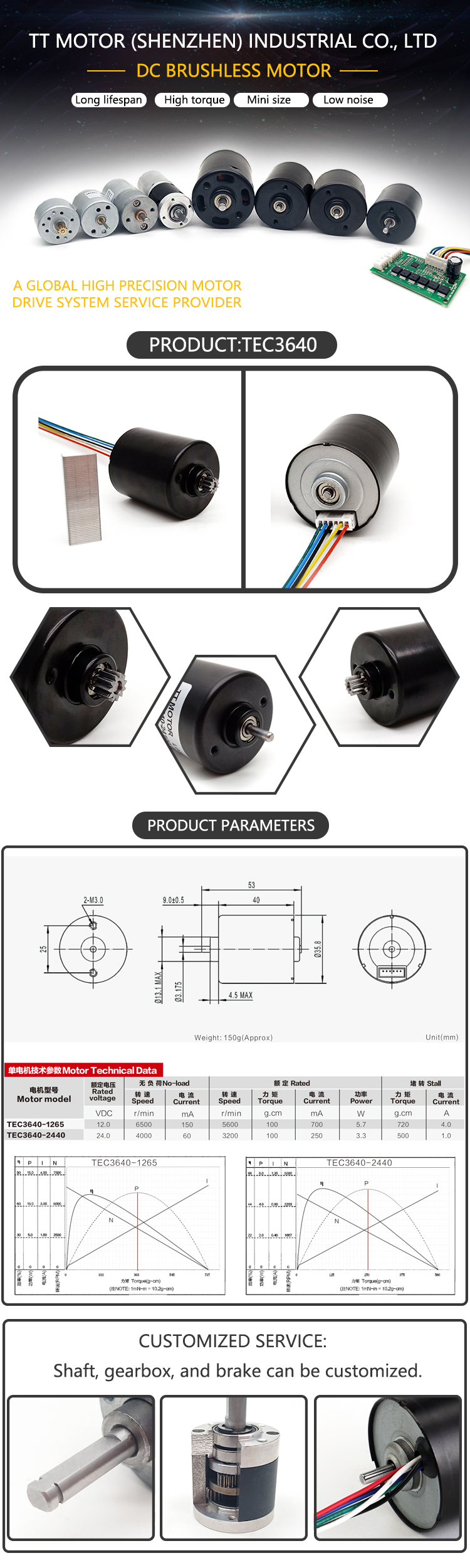

| Model: TEC3640 Series | |||
|---|---|---|---|
| TFC3640-1250 | Rated voltage: 12VDC | Rated speed: 4000r/min | Output power: 6.2W |
| No-load speed: 5000r/min | Rated torque: 150g.cm | Stall torque: 600g.cm | |
| No-load current: 750mA | Rated current: 1000mA | Stall current: 2.5A | |
| TFC3640-1233 | Rated voltage: 12VDC | Rated speed: 2400r/min | Output power: 6.2W |
| No-load speed: 3300r/min | Rated torque: 250g.cm | Stall torque: 880g.cm | |
| No-load current: 250mA | Rated current: 1000mA | Stall current: 2.5A | |
| TFC3640-2433 | Rated voltage: 24VDC | Rated speed: 2400r/min | Output power: 7.4W |
| No-load speed: 3300r/min | Rated torque: 300g.cm | Stall torque: 1650g.cm | |
| No-load current: 130mA | Rated current: 500mA | Stall current: 3.0A | |
| Category | Application 1 | Application 2 | Application 3 | Application 4 |
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera & Optical | Video | Cameras | Projectors | - |
| Lawn & Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Our quality management systems are certified by ISO9001 and SGS, recognizing us as a National high-tech enterprise.
Specializing in micro motors, gear motors, and high-precision parts since 2000. Our products are dependable, long-lasting, and backed by years of industry experience, with 98% of output exported worldwide.
Standard export packing to ensure product safety during transit.
Estimated Shipping Time:
