Product Description

GM12-15BY 15mm dc gear motor 5v

⚙️

Main Features

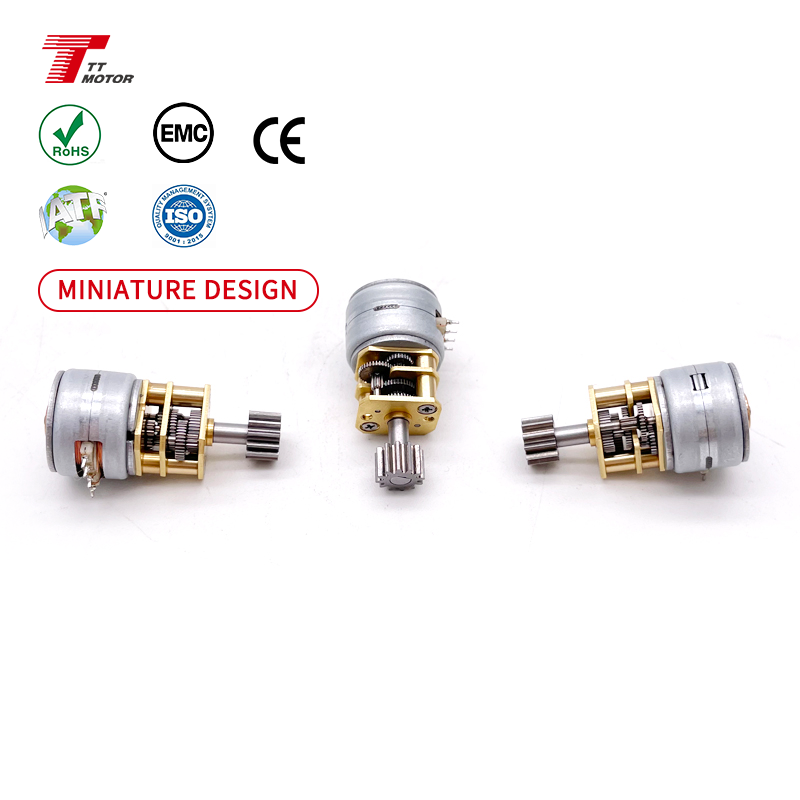

12*10mm gearbox plus 15mm dc gear motor 5v
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

📊

Technical Parameters

Model	Electrical Specifications	Performance Data
GM12-15BY-30	Rated voltage: 5VDC No.of Phase: 2 Step Angle: 18° Resistance: 10Ω	Gear Ratio: 1/30 Holding Torque: 500g.cm Current: 500mA Pull in Rate: 800pps
GM12-15BY-50	Rated voltage: 5VDC No.of Phase: 2 Step Angle: 18° Resistance: 10Ω	Gear Ratio: 1/50 Holding Torque: 700g.cm Current: 500mA Pull in Rate: 850pps
GM12-15BY-110	Rated voltage: 5VDC No.of Phase: 2 Step Angle: 18° Resistance: 10Ω	Gear Ratio: 1/110 Holding Torque: 1050g.cm Current: 500mA Pull in Rate: 850pps

🏭

Professional Capability

We have been specializing in DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors since 2006. Our motors are designed to be quiet, high torque and durable with numerous sizes options. They are widely used in robotics, electric vehicle, pump, medical equipment, home and Industrial appliances, etc.

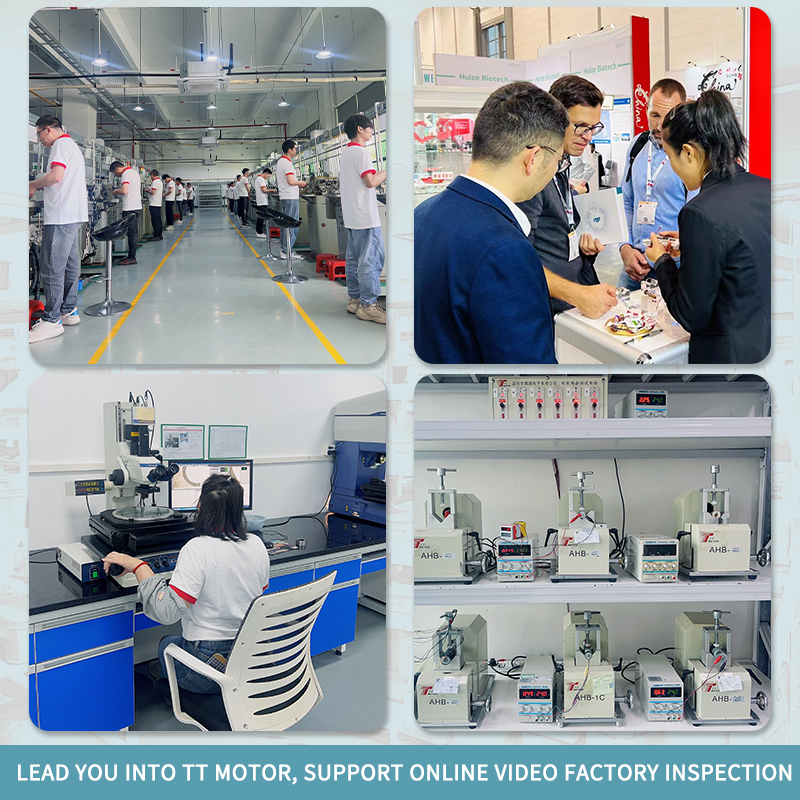

We have obtained certifications ISO9001:2015 and IATF16949. In recent years, our company has introduced a series of advanced equipment, including 100 sets Wahli hobbing machines, winding machines, auto lathe and so on. We aim to continue as a pioneer in the sales overseas by seeking global partners.

❓

Frequently Asked Questions

What are the main advantages of the GM12-15BY gear motor?

This motor combines a compact 12*10mm gearbox with a 15mm motor, offering low speed and exceptionally high torque for its small size, along with low noise operation.

Can I customize the reduction ratio for my specific application?

Yes, we offer a wide variety of reduction ratios ranging from 3 up to 380, allowing you to fine-tune the speed and torque for your specific needs.

What quality certifications does your factory hold?

Our production processes are fully certified under ISO9001:2015 and IATF16949 standards, ensuring consistent quality and reliability.

What are the typical applications for these micro motors?

These motors are widely used in robotics, medical equipment, electric vehicles, pumps, and various home or industrial appliances requiring precision movement.

Does the motor support high-frequency pulse rates?

Yes, depending on the gear ratio, the motor supports pull-in rates between 800pps and 850pps at 5VDC.

What equipment is used in the manufacturing process?

We utilize advanced machinery including 100 sets of Wahli hobbing machines, high-precision winding machines, and automated lathes to ensure production quality.
