Ovron Motor
Ovron Motor

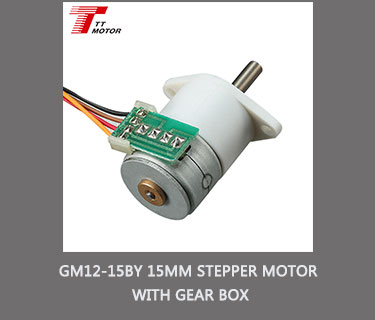

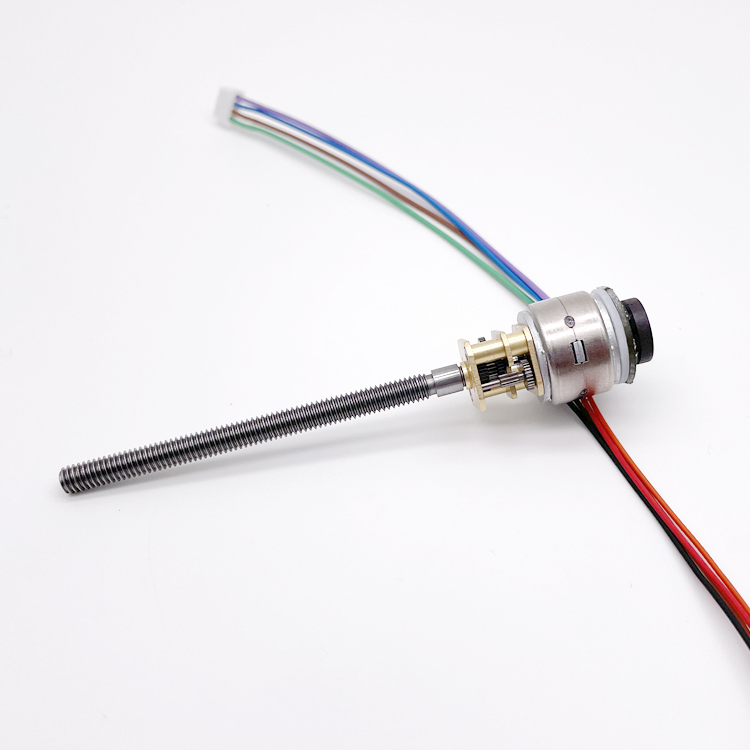

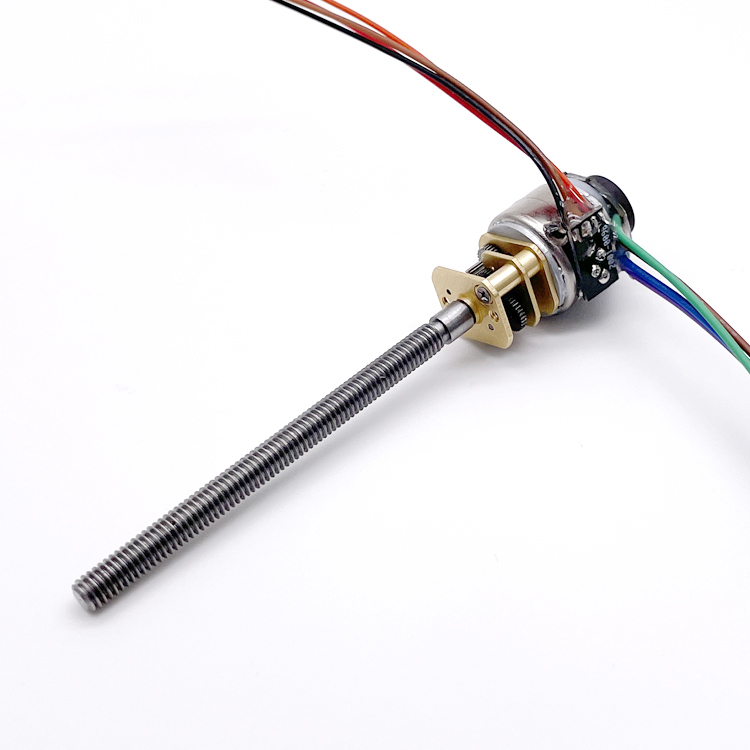

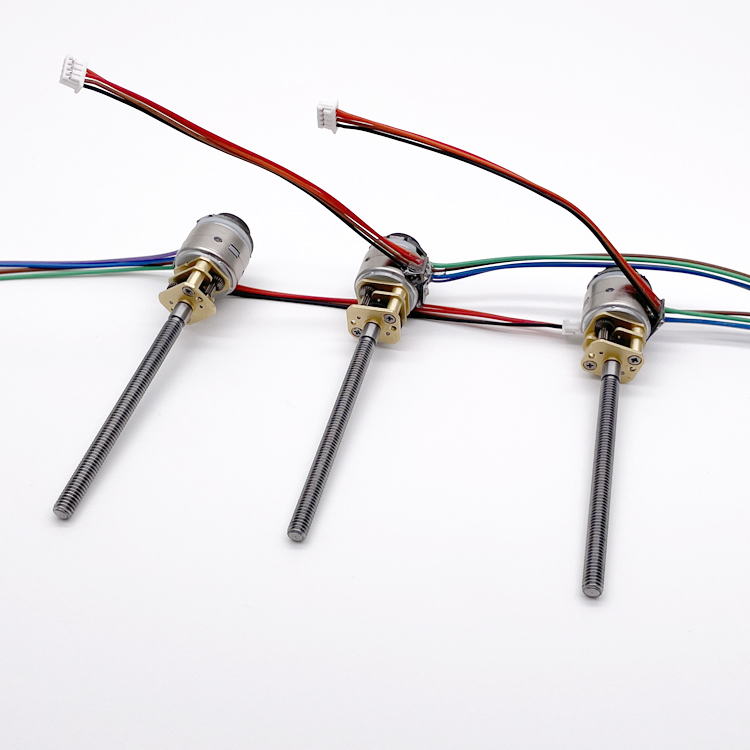

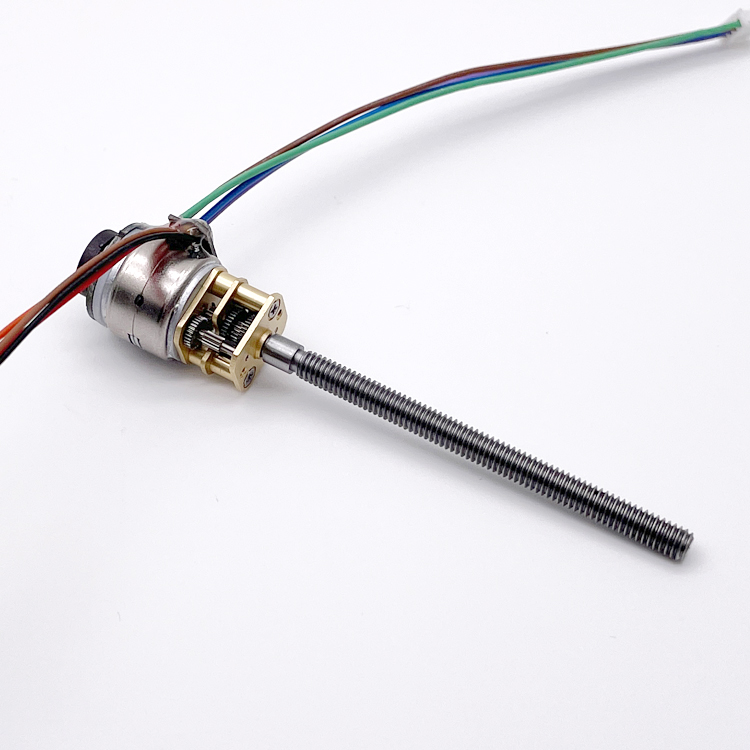

High-precision micro stepping motor combined with a durable gearbox for superior control and torque performance.
| Model | Specifications | Performance Data |
|---|---|---|
| GM12-15BY-30 | Rated voltage: 5VDC | Resistance: 10Ω |
| No. of Phase: 2 | Holding Torque: 500g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/30 | Pull in Rate: 800pps | |
| GM12-15BY-50 | Rated voltage: 5VDC | Resistance: 10Ω |
| No. of Phase: 2 | Holding Torque: 700g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/50 | Pull in Rate: 850pps | |
| GM12-15BY-110 | Rated voltage: 5VDC | Resistance: 10Ω |
| No. of Phase: 2 | Holding Torque: 1050g.cm | |
| Step Angle: 18° | Current: 500mA | |
| Gear Ratio: 1/110 | Pull in Rate: 850pps |
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Category | Specific Applications | |||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Our production processes comply with ISO9001, SGS, and national high-tech enterprise standards.
Specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. We export 98% of our output worldwide, maintaining a reputation for honesty, dependability, and quality.
Trusted by industry leaders including NIKE, FLEXTRONICS, STANLEY, and more.
Standard professional packing for safe transit.
Excellent quality, better price, good service, and on-time delivery.
