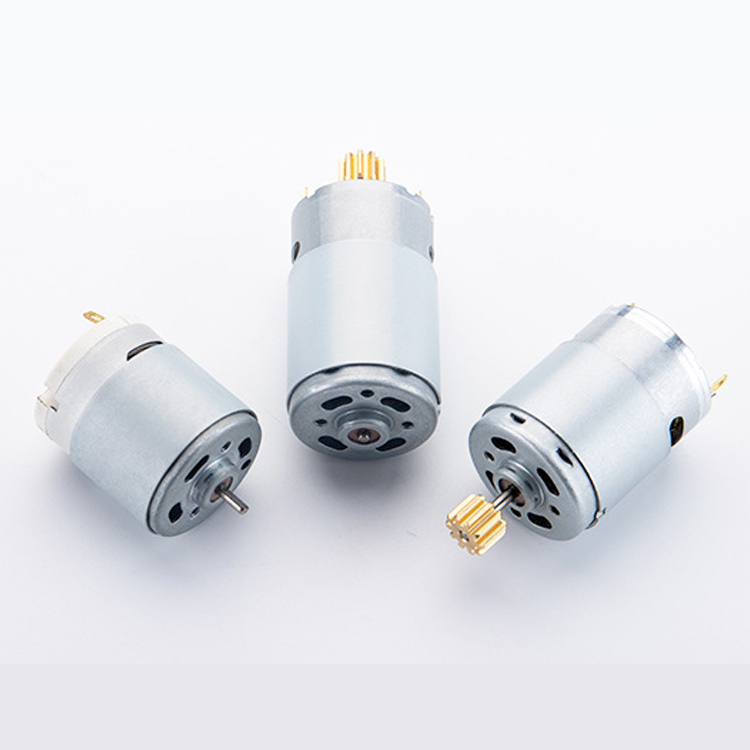

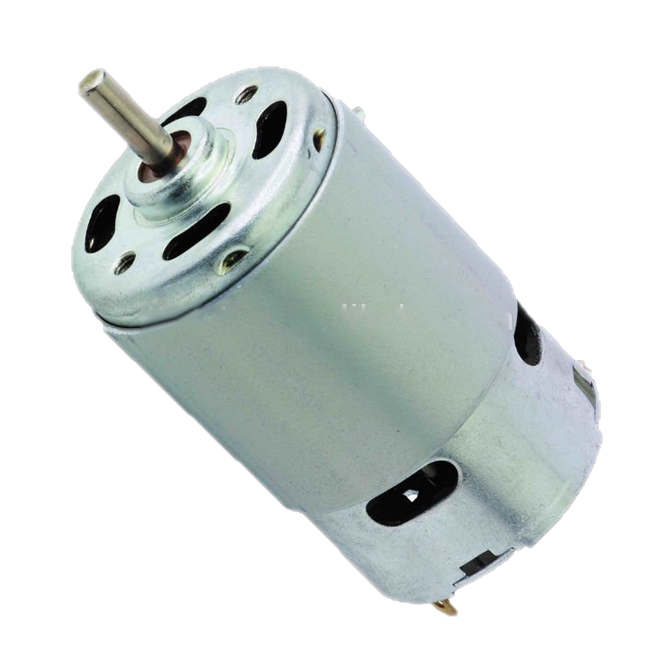

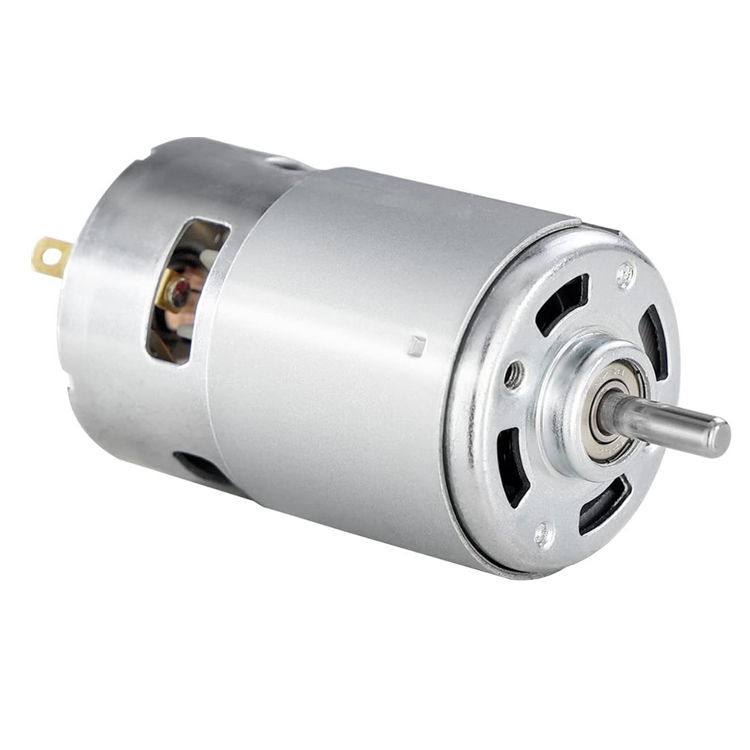

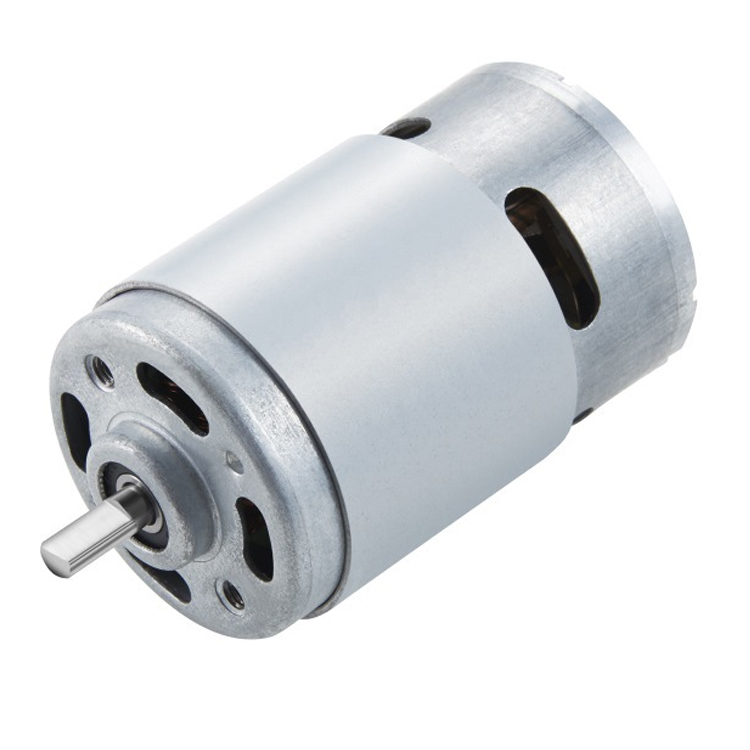

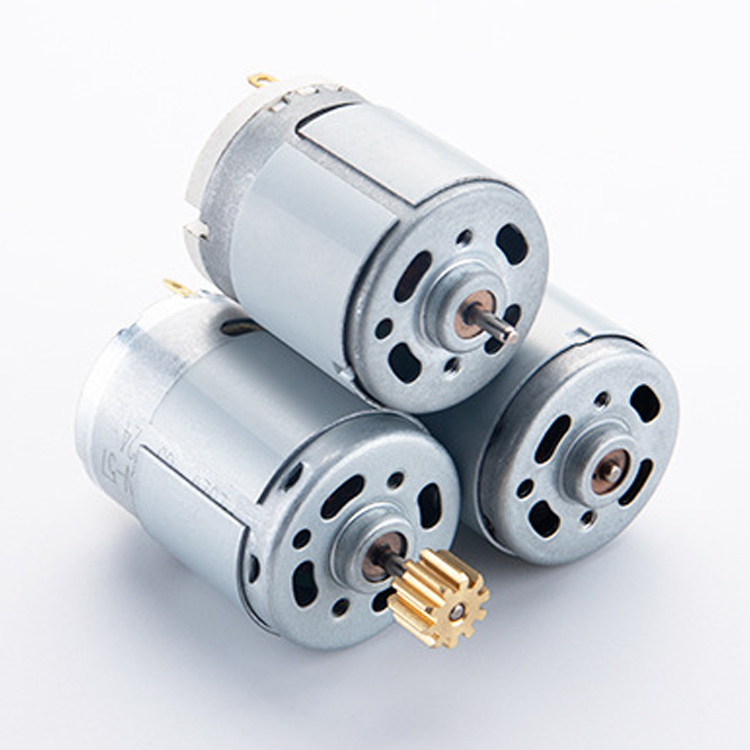

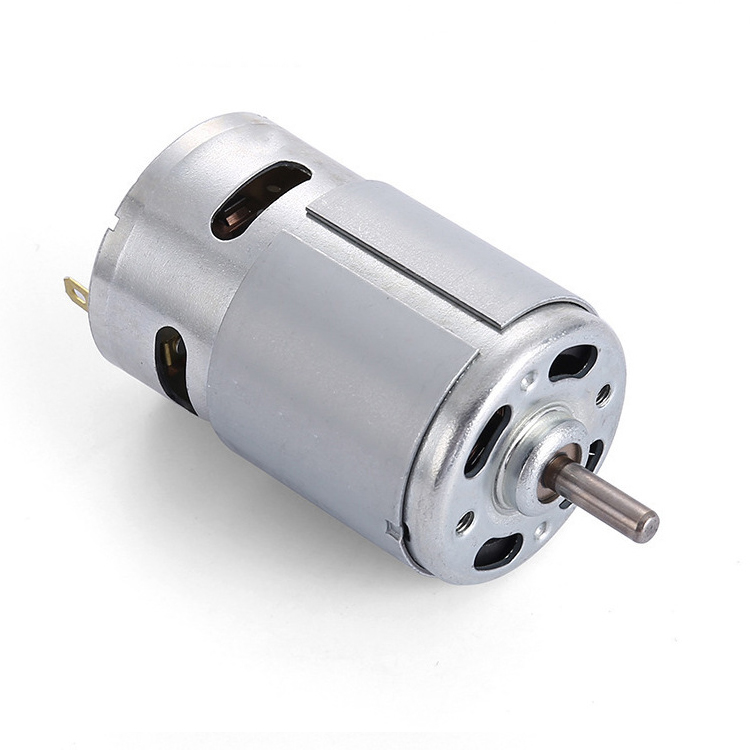

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor

Send Inquiry

Product Description

TT Motor High RPM RS-555 and RS-775 DC Motor 12V 24V DC Brushed Motor

Key Specifications & Features

1 Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.

2 Performance: High efficiency, less noise, and low current 24V DC motor.

3 Gearbox Compatibility: Can match with 45mm planetary gearbox or 51mm gear box.

4 Shaft Details: 5.0mm diameter, shaft length options of 14.5mm or 19.5mm.

5 Mounting: Equipped with 2-M4.0x0.7 mounting holes.

6 Encoder Support: Features a double shaft for encoder integration (12ppr).

7 Sampling: Samples can be provided for your performance testing.

Technical Performance Data

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		OPERATING RANGE	V	rpm	A	rpm	A	mN.m	g.cm	w	mN.m	g.cm	A
TRS-775PM	2765	6.0-30.0	24.0	7600	0.37	5810	0.22	73.53	750	44.7	312.35	3186	8.23
TRS-775PM	4045	6.0-15.0	12.0	4600	0.60	3500	4.30	84.31	860	36.6	352.94	3600	16.1

Product Dimensions & Diagrams

Frequently Asked Questions (FAQ)

Q1: What are the main applications for RS-555 and RS-775 motors?

These high RPM DC motors are widely used in printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, and string trimmers.

Q2: Can these motors be integrated with gearboxes?

Yes, they are designed to be compatible with 45mm planetary gearboxes or 51mm standard gear boxes for increased torque applications.

Q3: What are the shaft specifications for these brushed motors?

The motors feature a 5.0mm diameter shaft with available lengths of 14.5mm or 19.5mm to suit different mechanical requirements.

Q4: Do these motors support speed and position feedback?

Yes, they are available with a double shaft configuration specifically designed for 12ppr encoders.

Q5: Is it possible to test a sample before placing a bulk order?

Absolutely. We can provide samples for your technical evaluation and testing to ensure they meet your application requirements.

Q6: What are the standard operating voltages?

The TRS-775PM series typically operates within a range of 6.0V to 30.0V DC, with nominal ratings at 12V and 24V.
