Product Description

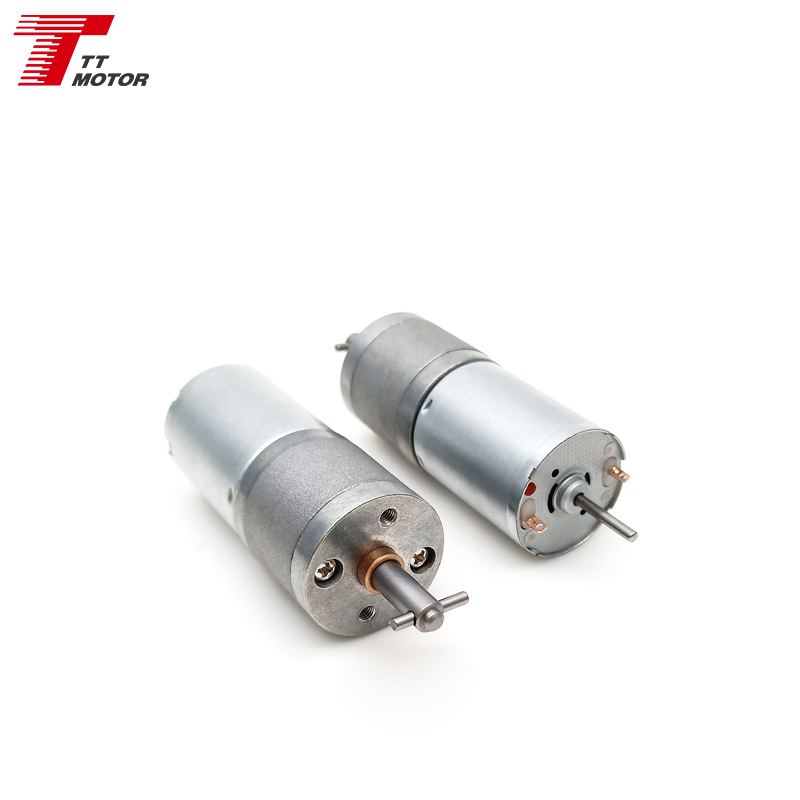

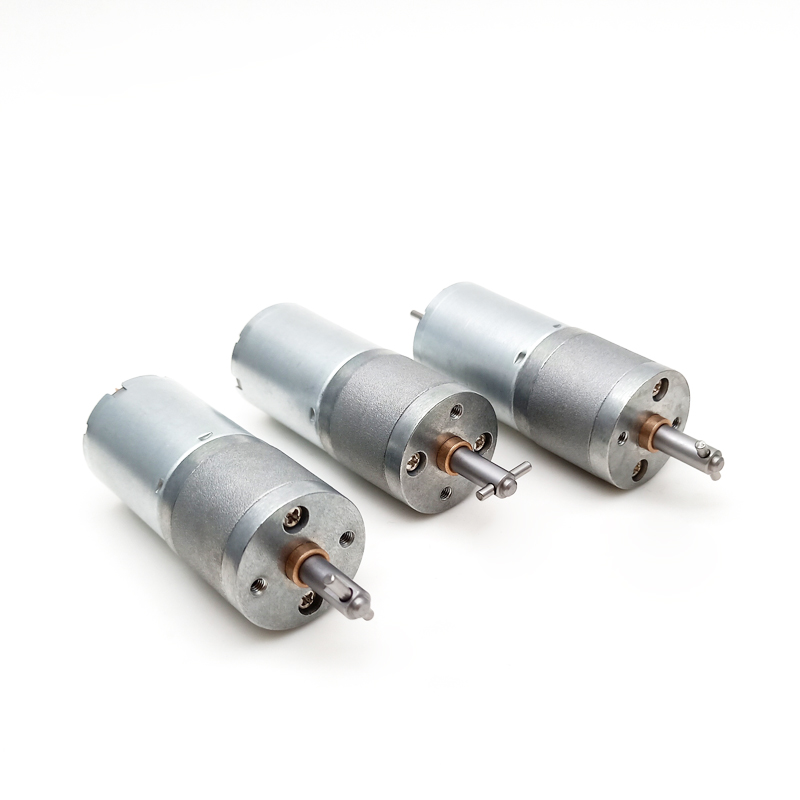

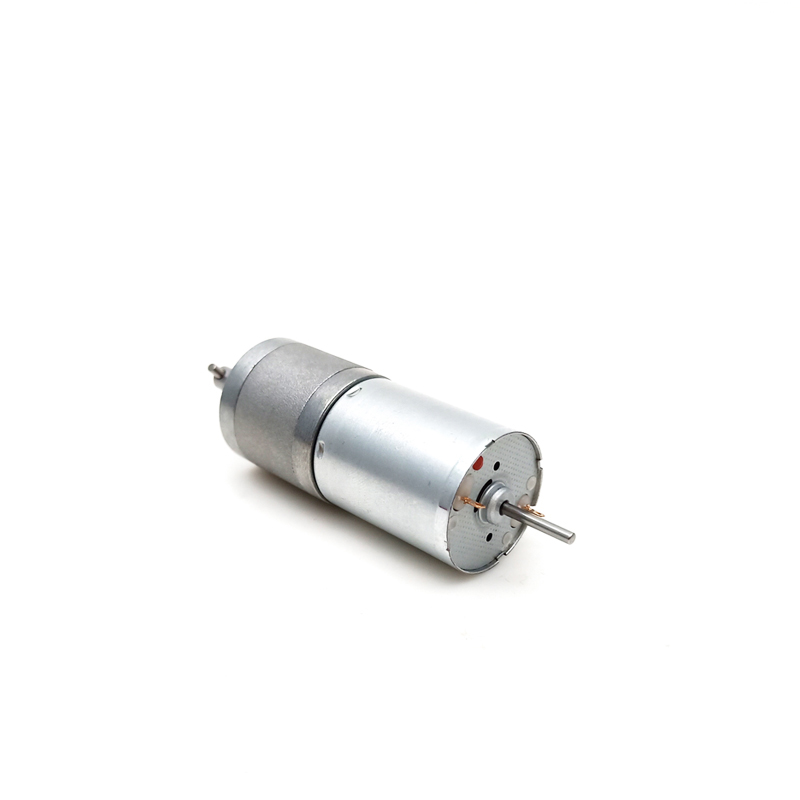

⚙️ GM25-370CA 6V 12V DC Electric Gear Motor

Ideal for TV broadcast satellite antenna applications.

🔹 Main Features

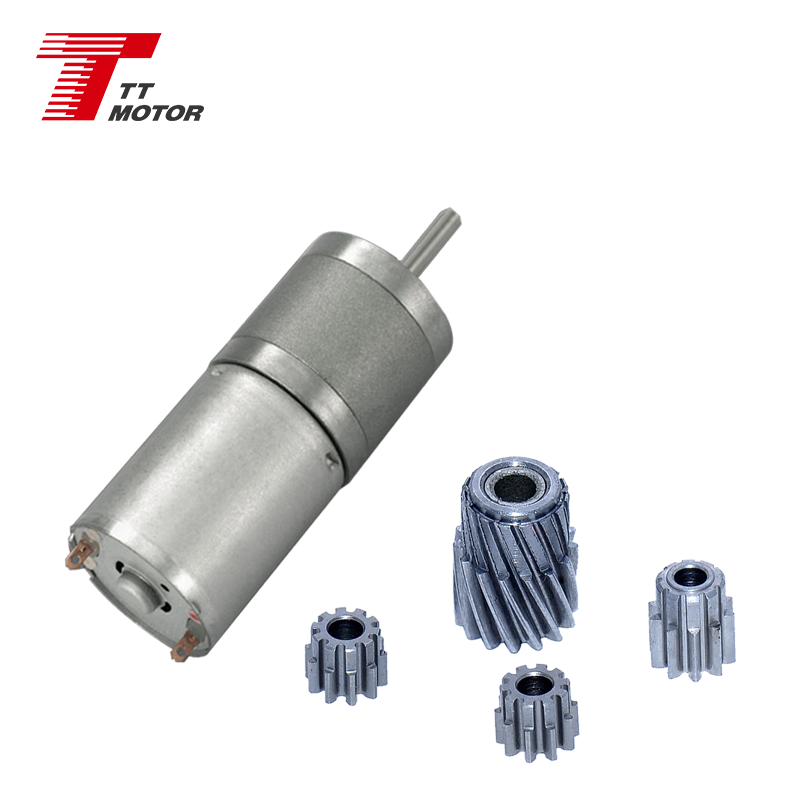

✔ 25mm gearbox plus 370 & 320 permanent magnet DC motor

✔ Small size dc gear motor with low speed and big torque

✔ 25mm gear motor provides 0.5Nm torque and high reliability

✔ Suitable for small diameter, low noise and high torque applications

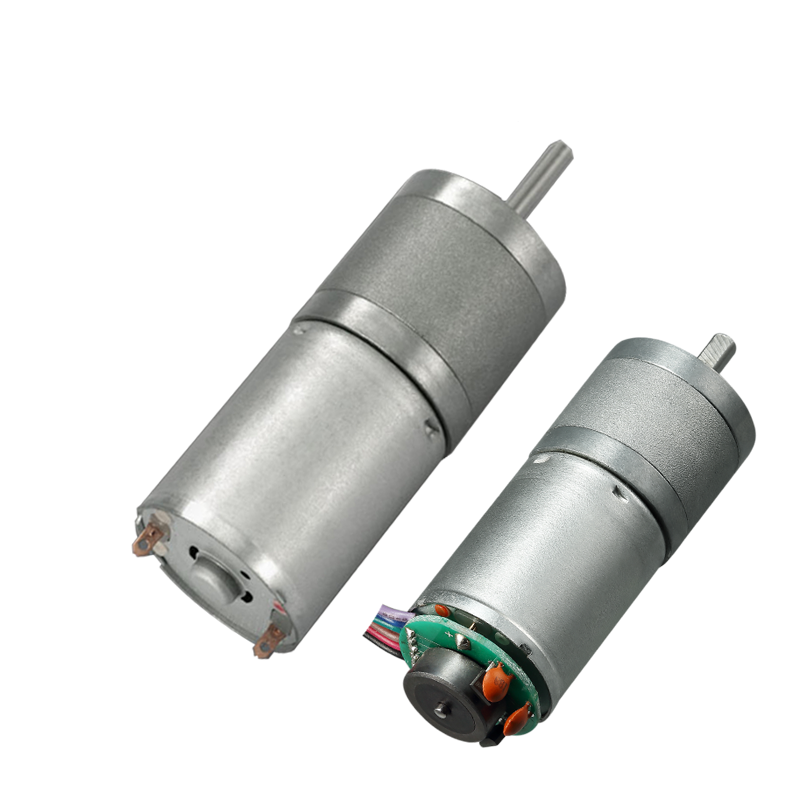

✔ DC gear motors can match encoder (11ppr)

✔ Wide range of reduction ratios: 4 to 499

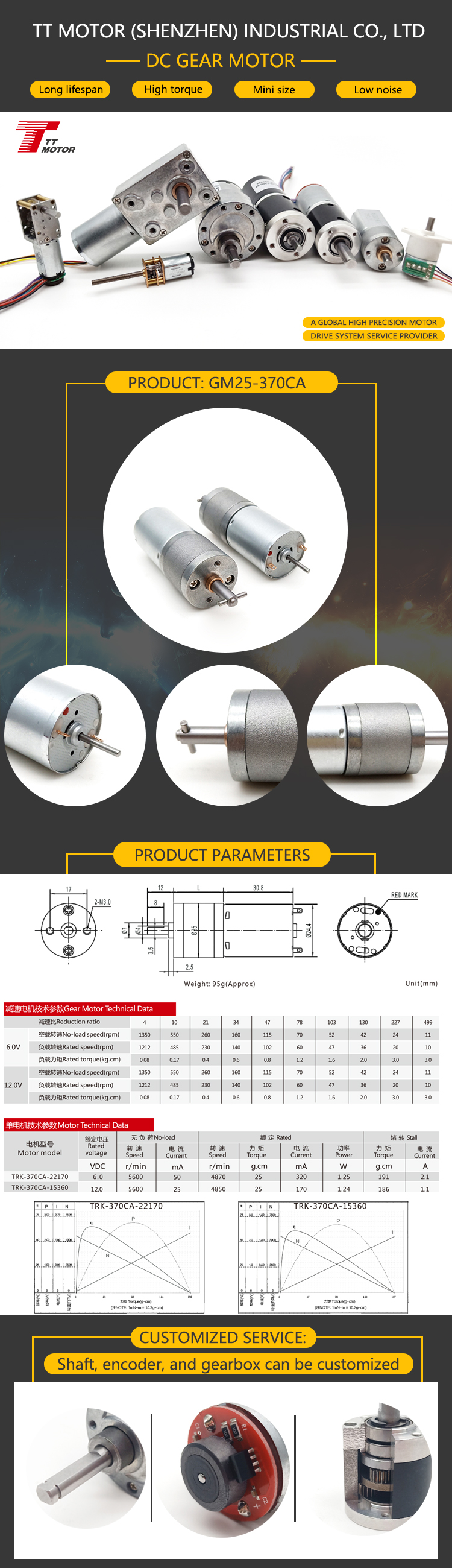

📊 Technical Data - Model GM25-370CA

Motor Model	Rated Voltage	Rated Speed	Output Power	No-load Speed	Rated Torque	Stall Current
TRK-370CA-22170	6VDC	4800r/min	1.18W	5600r/min	24g.cm	2.1A
TRK-370CA-15360	12VDC	4800r/min	1.18W	5600r/min	24g.cm	1.06A
TRK-370CA-12560	12VDC	3000r/min	0.62W	3700r/min	20g.cm	0.6A

📉 Gearbox Reduction Ratio Data

Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
Rated Speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated Torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7

🚀 Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, and more.

Category	Specific Applications
Business Machines	Vending Machines	Printers / ATM	Copiers and Scanners
Camera & Optical	Video Systems	Cameras	Projectors
Lawn & Garden	Lawn Mowers	Snow Blowers	Trimmers / Leaf Blowers

📜 Certifications

ISO9001, SGS, National high-tech enterprises, etc.

🏢 Industry Expertise

Specializing in micro motors, gear motors, and respective parts since 2000. Products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. With a global export rate of 98%, the products are dependable and backed by years of engineering experience.

Key Partners: NIKE, FLEXTRONICS, STANLEY, etc.

📦 Packing & Delivery

Shipping Estimates:

✈️ DHL: 3-5 working days
✈️ UPS/TNT: 5-7 working days
✈️ FedEx: 7-9 working days
🚢 Sea Freight: Depends on destination country

💬 Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

❓ Frequently Asked Questions

Q: What is the typical ordering process?

A: Send an inquiry → Receive quotation → Negotiate details → Confirm sample → Sign contract/Deposit → Mass production → Cargo ready → Balance/Delivery.

Q: Are samples available for testing?

A: Yes, samples are available. Please contact us for specific requirements. Sample fees are typically refunded once a formal mass production order is placed.

Q: What shipping methods do you support?

A: We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other methods can be arranged upon request.

Q: What is the standard production lead time?

A: Production time usually takes 15-25 working days, depending on the order quantity and specific technical requirements.

Q: What payment methods are accepted?

A: We accept T/T, PayPal, and other negotiable payment methods. Standard terms include a 30-50% deposit with the balance paid before shipping.

Q: Can these motors be customized with encoders?

A: Yes, the GM25-370CA series can be matched with 11ppr encoders for applications requiring speed or position feedback.
