Product Description

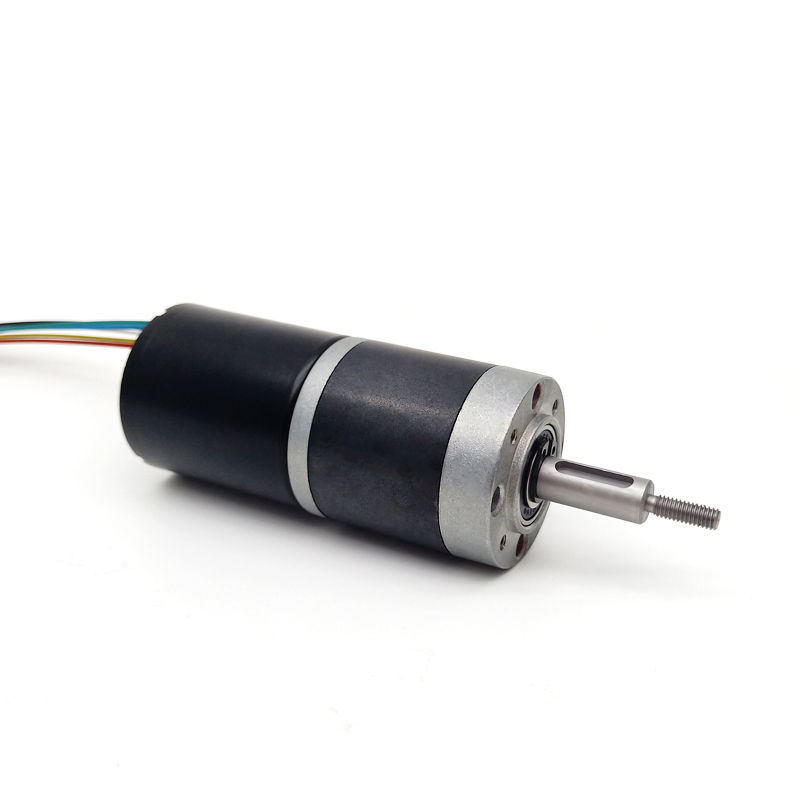

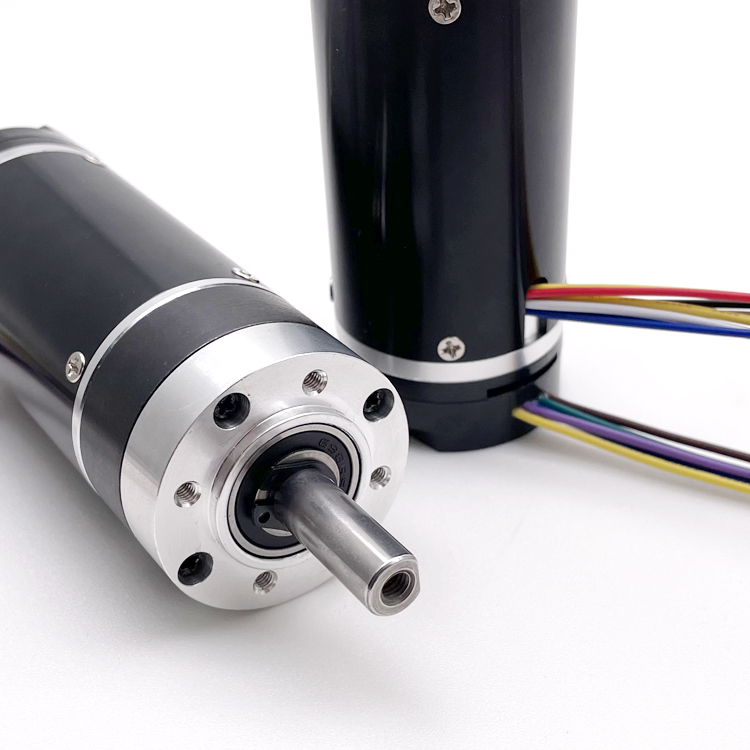

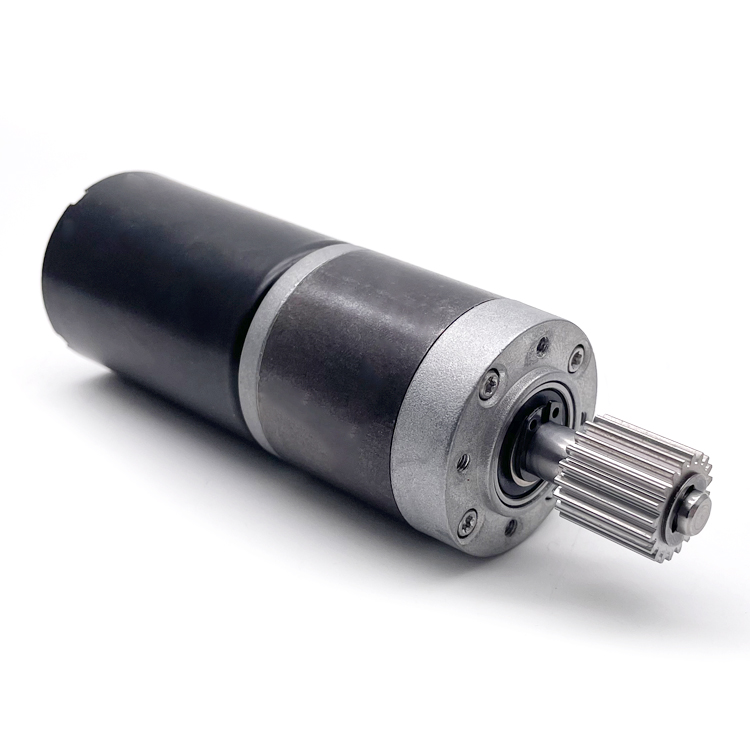

High Torque Low RPM Brushless DC Gear Motor (12V/24V)
  • 36mm Planetary reducer combined with high-performance brushless motor technology.
  • Compact size DC gear motor designed for low speed and high torque requirements.
  • Provides up to 3.0Nm maximum torque with enhanced reliability.
  • Ideal for applications requiring small diameters, low noise, and robust torque output.
  • Available Reduction Ratios: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720.

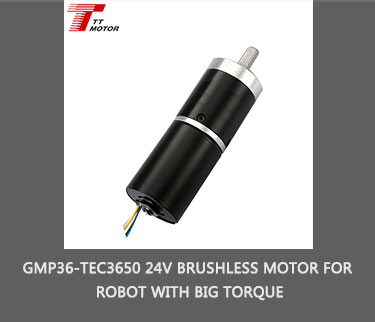

Technical Specifications - GMP36-TEC3650 Series
Model Rated Voltage No-load Speed Rated Speed Rated Torque Output Power
TEC3650-2465 24VDC 6500r/min 5400r/min 200g.cm 11.5W
TEC3650-2440 24VDC 4000r/min 3200r/min 200g.cm 6.6W
TEC3650-1245 12VDC 4500r/min 3500r/min 230g.cm 8.3W
Performance Data by Reduction Ratio
Reduction Ratio 4 19 51 100 139 189 264 369 516
Length (mm) 26 33.5 40.5 40.5 40.5 47.5 47.5 47.5 47.5
Rated Speed (rpm) 750 160 60 30 22 16 12 8 6
Rated Torque (kg.cm) 0.6 2.7 6.0 12 16.6 22.5 30 30 30

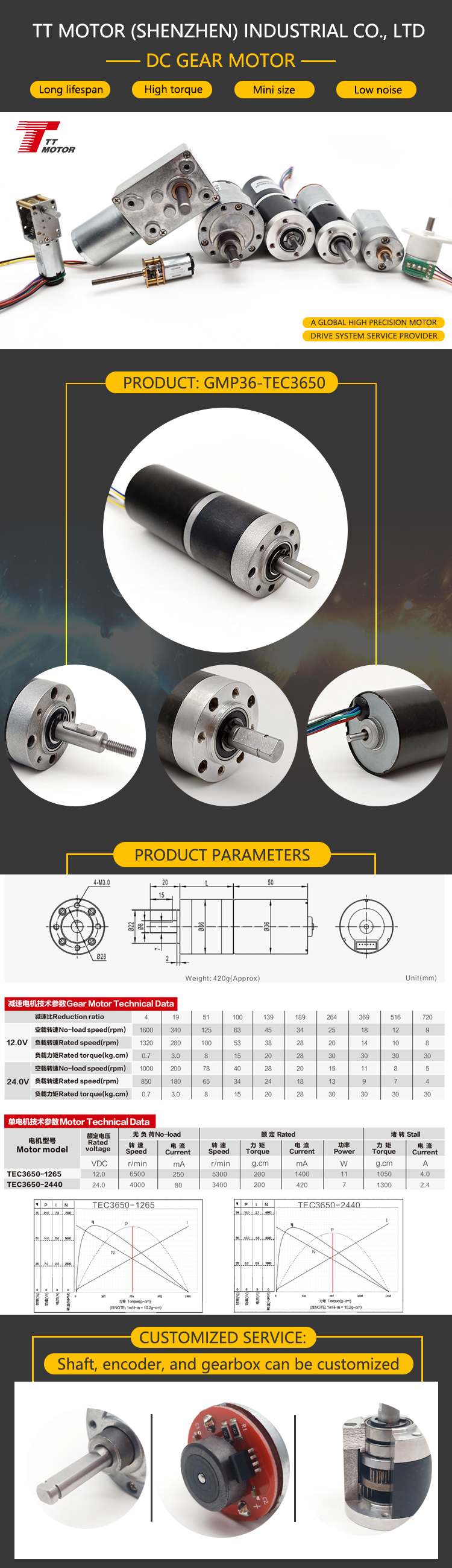

Brushless DC Gear Motor
Wide Product Applications

Our gear motors are versatile and suitable for a variety of high-precision industries:

  • Automation: Automatic door operators, electric curtains, and controlled valves.
  • Medical: Oxygen machines, medical service robots, and bath equipment.
  • Business: Vending machines, ATM components, printers, and scanners.
  • Outdoor: Grass cutters, lawn mowers, and snow blowers.
  • Optical: Camera gimbals, projectors, and video equipment.
Motor Application
Certifications & Quality Control

We maintain strict quality standards with certifications including ISO9001, SGS, and recognition as a National High-Tech Enterprise.

Certification 1
Certification 2
Certification 3
Packing & Global Delivery

Utilizing standard industrial packing to ensure safety during transit.

Packing 1
Packing 2
Packing 3

Estimated Shipping Times:

  • DHL: 3-5 working days
  • UPS / TNT: 5-7 working days
  • FedEx: 7-9 working days
  • EMS: 12-15 working days
  • Sea Freight: Depends on destination country
Frequently Asked Questions
How can I place an order for these gear motors?
Please send us an inquiry with your specific requirements. We will provide a quotation, negotiate details, and confirm samples before proceeding to mass production and delivery.
Are samples available for testing?
Yes, samples are available. While there is an initial sample fee, it is typically refunded once a formal bulk order is placed.
What are the available shipping methods?
We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight to accommodate different urgency and budget needs.
What is the typical lead time for production?
Production time generally ranges from 15 to 25 working days, depending on the order quantity and customization requirements.
What payment methods do you accept?
We accept T/T and PayPal. A 30-50% deposit is standard, with the remaining balance due prior to shipping.
What should I do if my package has missing products?
Please contact our support team immediately. We will cross-reference your order with our package logs to resolve any discrepancies promptly.
