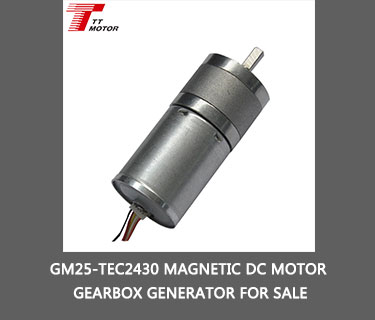

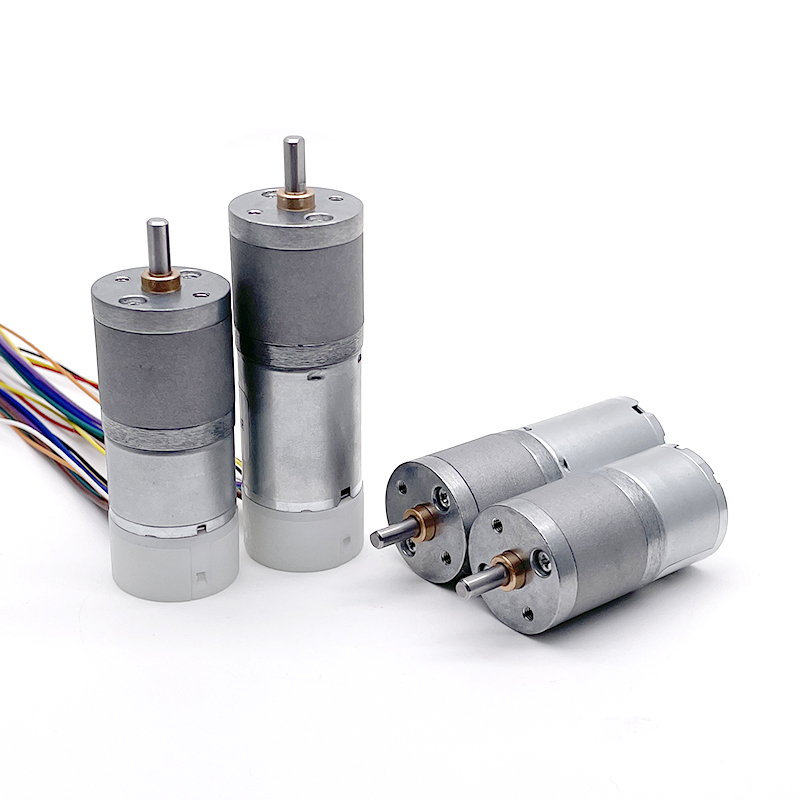

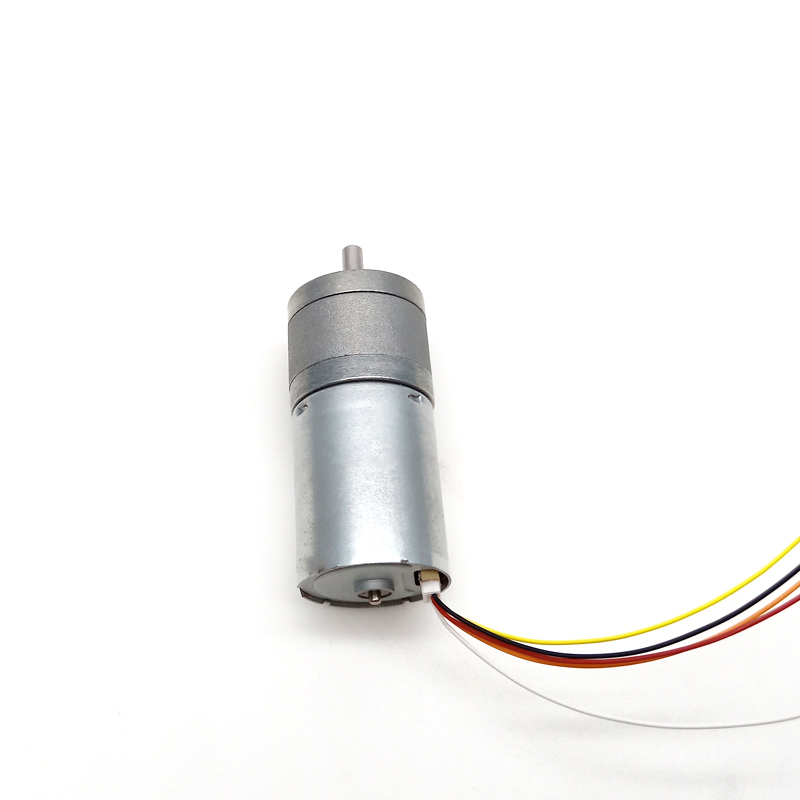

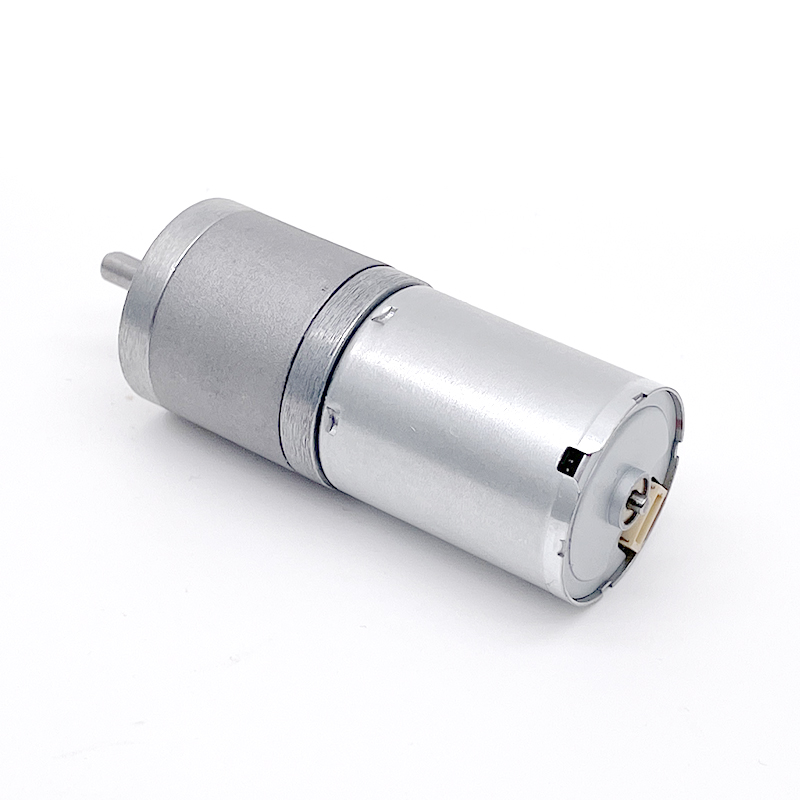

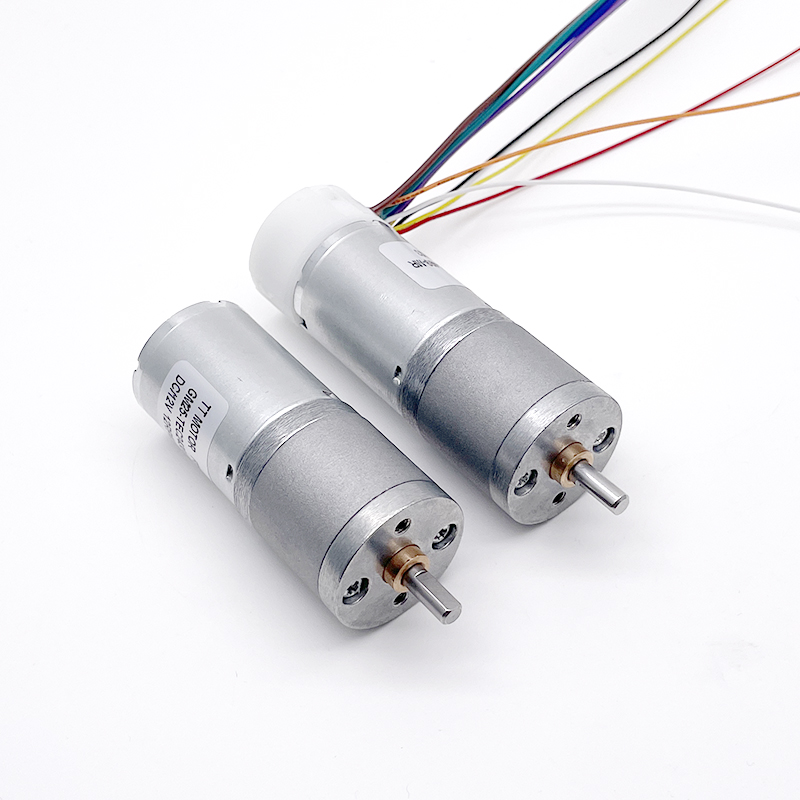

25mm 12v 24v Micro Brushless Gear DC Motor
High-performance brushless gear motor specifically designed for medical products and high-precision applications.
Main Features
25mm gearbox combined with a 24mm high-efficiency brushless motor
Small size design with low speed and exceptionally big torque
Reliable performance providing up to 0.5Nm torque
Optimized for small diameter, low noise, and big torque applications
Compatible with encoders (3ppr) for precise control
Wide range of reduction ratios: 4 to 499

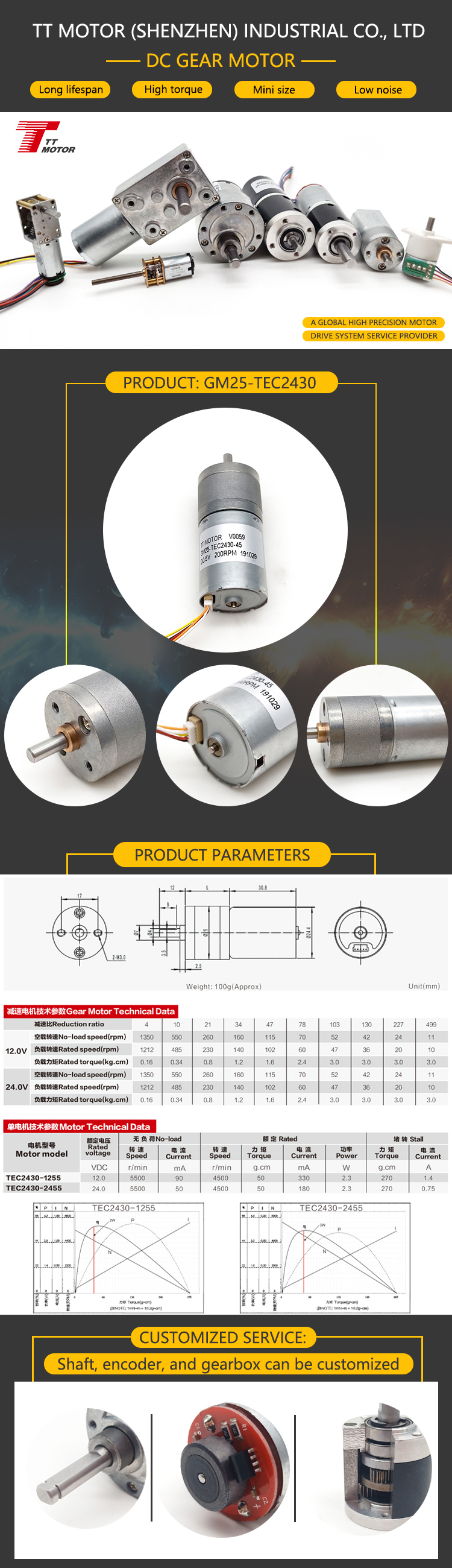

Model: GM25-TEC2430 Technical Data
| Model Variant |
Rated Voltage |
No-load Speed |
Rated Speed |
Rated Torque |
Output Power |
| TEC2430-0645 |
6V DC |
4500r/min |
3500r/min |
62g.cm |
2.2W |
| TEC2430-1260 |
12V DC |
6000r/min |
4600r/min |
84g.cm |
4.6W |
| TEC2430-2490 |
24V DC |
9000r/min |
7200r/min |
90g.cm |
6.7W |
Reduction Ratio Performance (GM25-TEC2430-0645-XX)
| Reduction ratio |
4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length (mm) |
17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| Rated Speed (rpm) |
870 | 350 | 165 | 100 | 75 | 45 | 34 | 27 | 16 |
| Rated Torque (kg.cm) |
0.2 | 0.4 | 0.9 | 1.3 | 1.7 | 2.9 | 3.8 | 4 | 5 |
Product Applications
Our motors are versatile and ideal for: Automatic door operators, automatic energy saving baths, electrical controlled valves, robots, grass cutters, electric curtains, cameras, medical services, and oxygen machines.
| Category |
Typical Applications |
| Business Machines |
Vending Machines |
Printers |
ATM |
Copiers and Scanners |
| Camera & Optical |
Video |
Cameras |
Projectors |
- |
| Lawn & Garden |
Lawn Mowers |
Snow Blowers |
Trimmers |
Leaf Blowers |
Certifications & Quality Assurance
Recognized for excellence with ISO9001, SGS, and National High-tech Enterprise certifications.
Professional Motor Manufacturer
Specializing in micro motors, gear motors, and high-precision parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and professional tools. With 98% of our output exported worldwide, we maintain a hard-won reputation for honesty, dependability, and quality.
Packing & Delivery
Estimated Shipping Times:
DHL: 3-5 working days | UPS: 5-7 working days | TNT: 5-7 working days | FedEx: 7-9 working days | EMS: 12-15 working days | Sea Freight: Depends on destination.
Frequently Asked Questions
How can I place an order?
Send us an inquiry to receive a quotation. We will negotiate details, confirm samples, sign a contract, and proceed to mass production once the deposit is received.
Is sample ordering available?
Yes, samples are available. Sample fees are typically refundable when you place a formal bulk order.
What are the available shipping methods?
We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other methods can be arranged upon request.
What is the production and shipping lead time?
Delivery time depends on the order quantity, but it usually takes between 15 to 25 working days.
What should I do if my package is missing products?
Please contact our support team immediately. We will verify your order against the package contents and resolve any issues.
What payment methods are accepted?
We accept T/T, PayPal, and other standard payment methods. A 30-50% deposit is standard, with the balance due before shipping.
