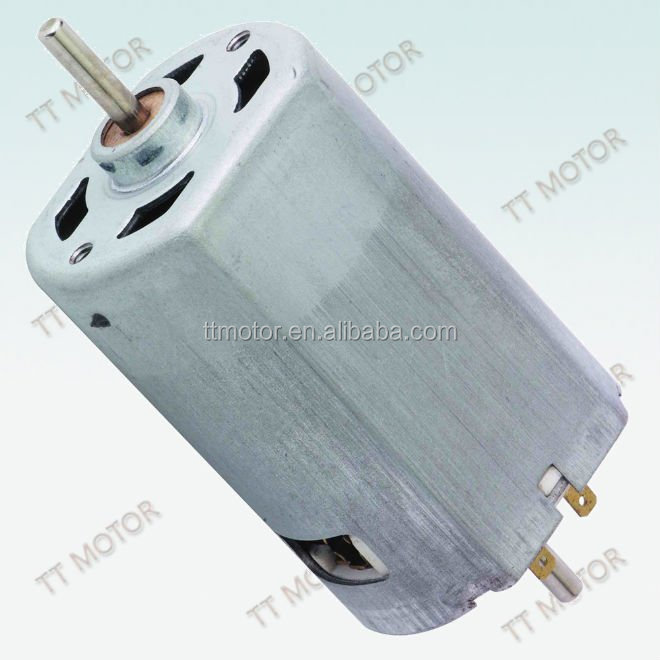

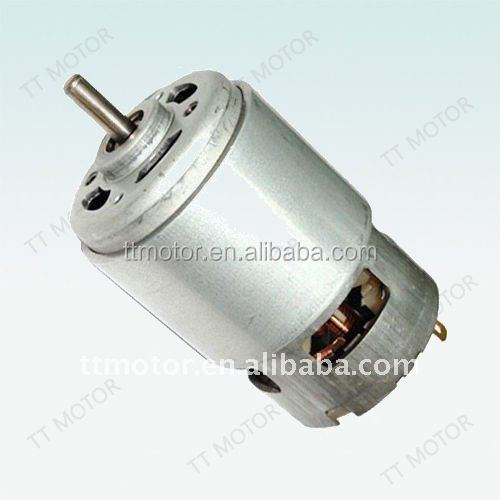

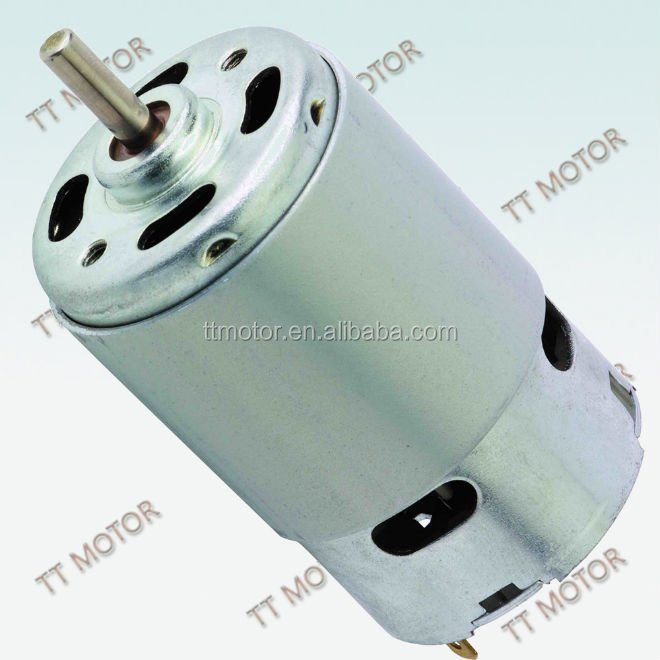

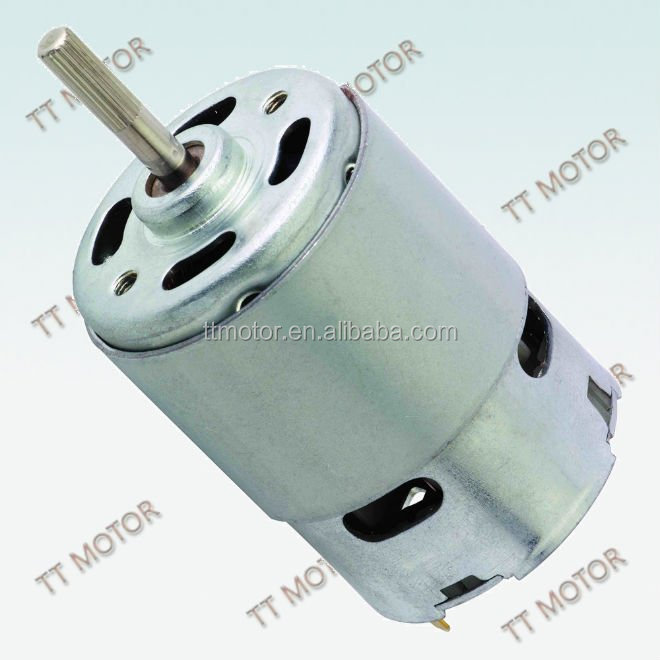

TRS-550PM or 24v Dc Motor

Send Inquiry

Product Description

24v dc motor, TRS-550PM Specifications

⚡ Voltage: 120V

🔄 Speed: 18000 RPM

💪 Torque: 3512g.cm

🛡️ Features: Low current, noise, no spark, no vibration

🚀 Typical Applications: Ride-on Toy, Grass trimmer, Air Compressor, Drill

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	OPERATING RANGE (V)	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE (V)	V	r/min	A	r/min	A	mN.m	g.cm	w	mN.m	g.cm	A
TRS-550PM	3.0 - 18.0	12.0	5200	0.25	4330	1.60	29.41	300	13.3	176.47	1800	8.32
TRS-550PM	6.0 - 12.0	12.0	18000	1.30	16100	7.15	41.18	420	69.0	344.31	3512	52.0

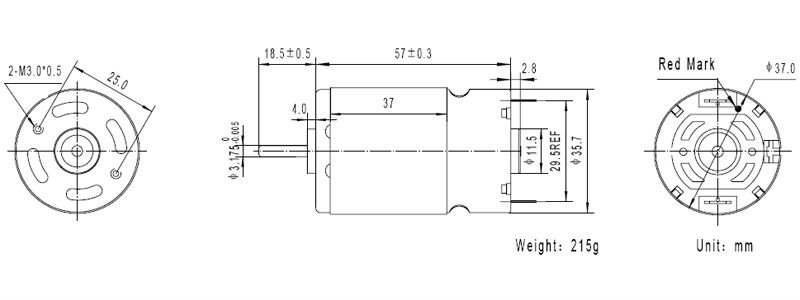

TRS-550PM 24v Dc Motor Performance Chart

Frequently Asked Questions

What are the main applications for the TRS-550PM DC motor?

This motor is commonly used in high-performance applications such as ride-on toys, grass trimmers, air compressors, and power drills.

What voltage range does this motor support?

The TRS-550PM operates within a flexible range from 3.0V to 18.0V, with nominal performance typically rated at 12.0V or higher depending on the specific model variation.

Does the TRS-550PM motor offer quiet operation?

Yes, one of its primary features is low noise operation, along with no sparking and no vibration, making it ideal for precision tools and toys.

What is the maximum speed (RPM) achievable?

The motor can reach a no-load speed of up to 18,000 RPM at its nominal voltage of 12.0V.

What is the stall torque of the TRS-550PM 6530 model?

The 6530 model variant provides a powerful stall torque of 3512 g.cm (344.31 mN.m) at 12.0V.

How efficient is this motor during operation?

At maximum efficiency, the motor maintains high speeds (up to 16,100 r/min) while keeping current consumption optimized between 1.6A and 7.15A depending on the load.
