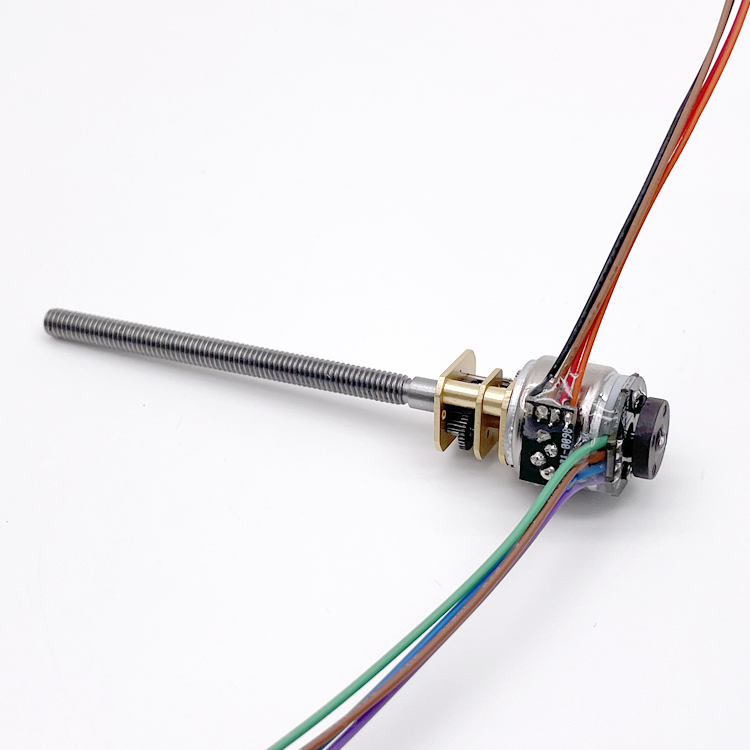

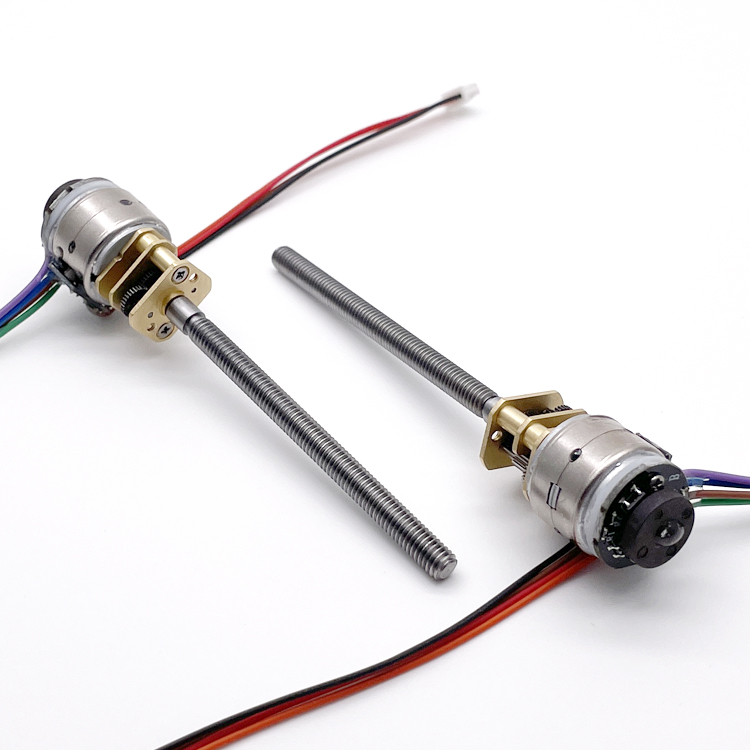

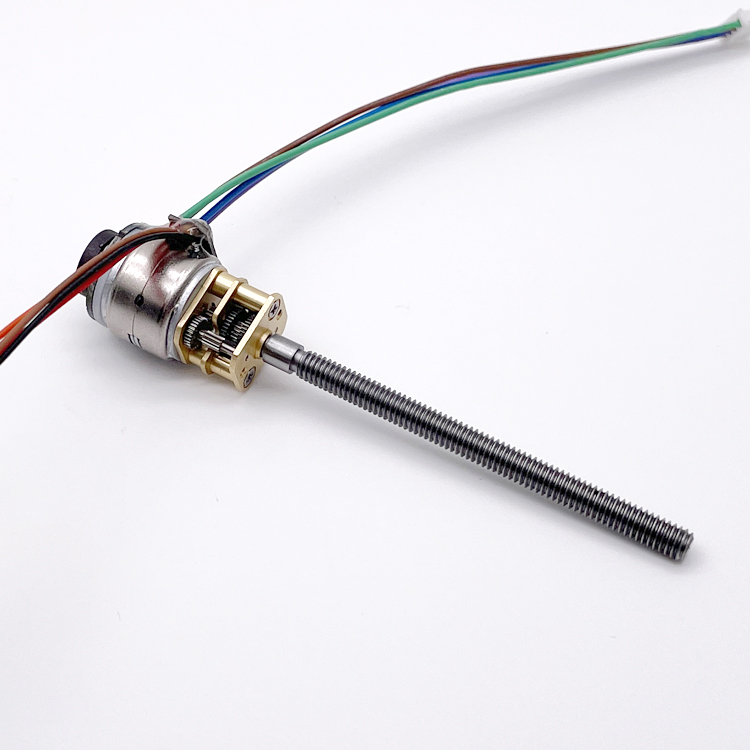

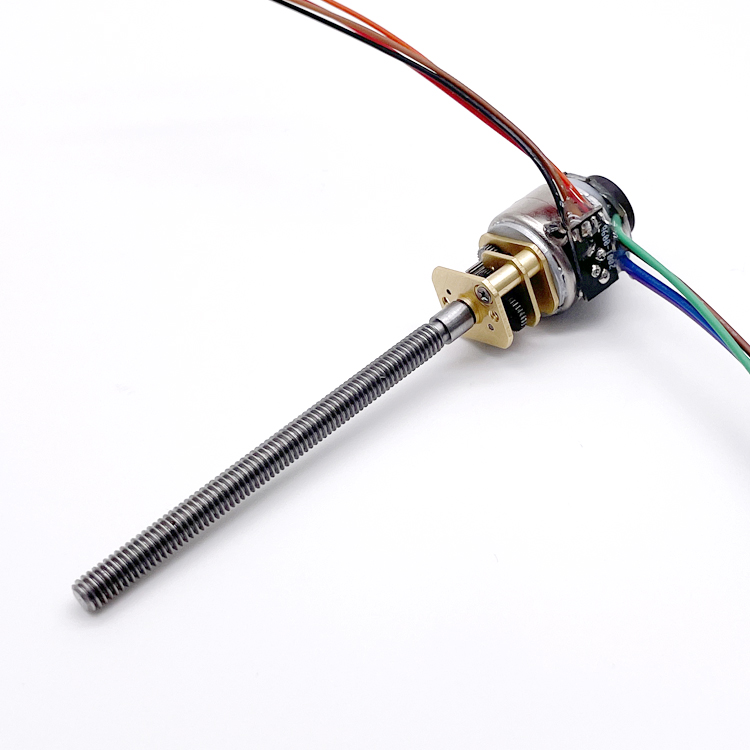

TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor

1 / 5

TT Motor China Supplier 5v Geared Dc Motor With Encoder Mini Stepper Motor

Send Inquiry

Product Description

⚙️ Geared DC Motor with Encoder Mini Stepper Motor

Main Features

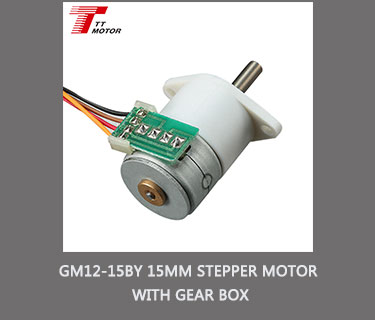

12*10mm gearbox plus 15mm stepping motor
Small size DC gear motor with low speed and big torque
12mm gear motor provides 0.05Nm torque and is more reliable
Suitable for small diameter, low noise, and big torque applications
Reduction ratios: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

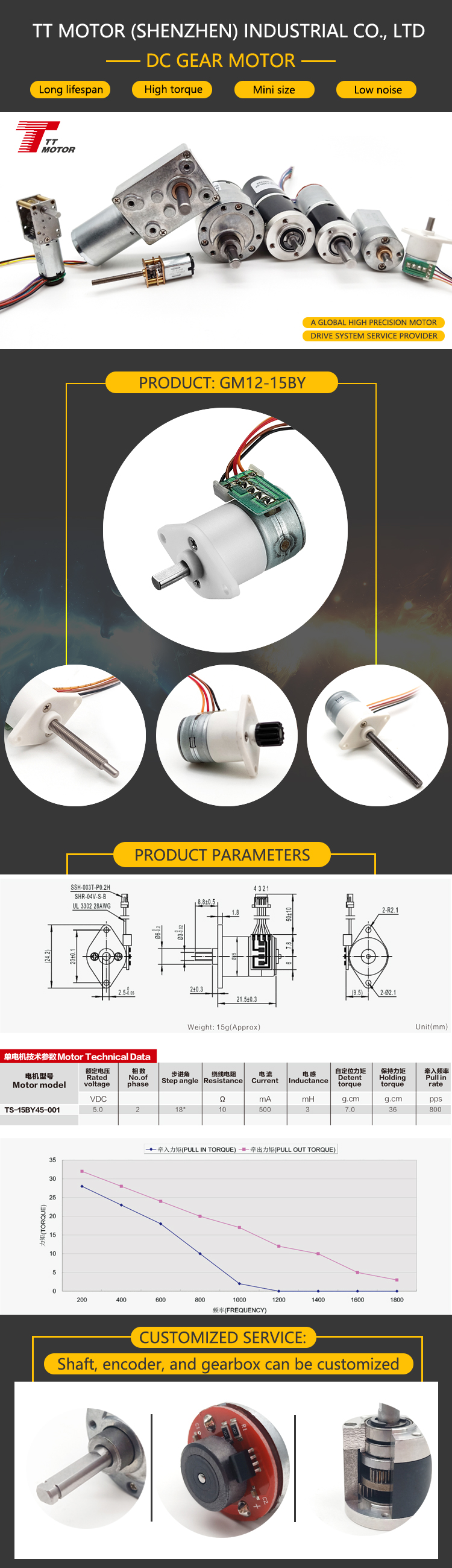

📊 Technical Specifications

Model	Electrical Parameters	Mechanical Parameters
GM12-15BY-30	Rated voltage: 5VDC No. of Phase: 2 Resistance: 10Ω Step Angle: 18° Current: 500mA	Gear Ratio: 1/30 Holding Torque: 500g.cm Pull in Rate: 800pps
GM12-15BY-50	Rated voltage: 5VDC No. of Phase: 2 Resistance: 10Ω Step Angle: 18° Current: 500mA	Gear Ratio: 1/50 Holding Torque: 700g.cm Pull in Rate: 850pps
GM12-15BY-110	Rated voltage: 5VDC No. of Phase: 2 Resistance: 10Ω Step Angle: 18° Current: 500mA	Gear Ratio: 1/110 Holding Torque: 1050g.cm Pull in Rate: 850pps

🚀 Product Application

Our motors are versatile and ideal for various automated systems:

Automatic door operators, energy-saving bath systems, electrical controlled valves, robots, grass cutters, electric curtains, cameras, medical equipment, oxygen machines, and more.

Category	Applications
Business Machines	Vending Machines, Printers, ATM, Copiers, Scanners
Camera & Optical	Video Equipment, Cameras, Projectors
Lawn & Garden	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers

🏆 Certifications & Quality

ISO9001, SGS, National high-tech enterprises, etc.

🏢 Manufacturing Profile

Specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. We export 98% of our output worldwide, maintaining a reputation for honesty, dependability, and quality.

🤝 Trusted Partners

Working with global leaders such as NIKE, FLEXTRONICS, STANLEY, etc.

📦 Packing & Delivery

Standard Export Packing.

🚚 Shipping Timeline

DHL: 3-5 working days
UPS / TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea/Post: Depends on destination country

💬 Customer Feedback

"Excellent quality, better price, good service, and on-time delivery."

❓ Frequently Asked Questions

Q: How to place an order? A: Send us an inquiry → Receive our quotation → Negotiate details → Confirm sample → Sign contract/Deposit → Mass production → Cargo ready → Balance/Delivery → Further cooperation.

Q: Can I request a sample order? A: Yes, samples are available. Please contact us for details. Sample fees are typically refunded once a formal bulk order is placed.

Q: Which shipping methods are available? A: We offer DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other methods can be arranged upon request.

Q: What is the typical production and shipping time? A: Production time depends on order quantity, usually taking 15-25 working days. Shipping time varies by carrier (3-15 days).

Q: What should I do if my package has missing products? A: Please contact our support team immediately. We will verify your order contents and resolve the issue as quickly as possible.

Q: How is payment confirmed? A: We accept T/T and PayPal. A 30-50% deposit is required, with the remaining balance to be paid before shipping.
