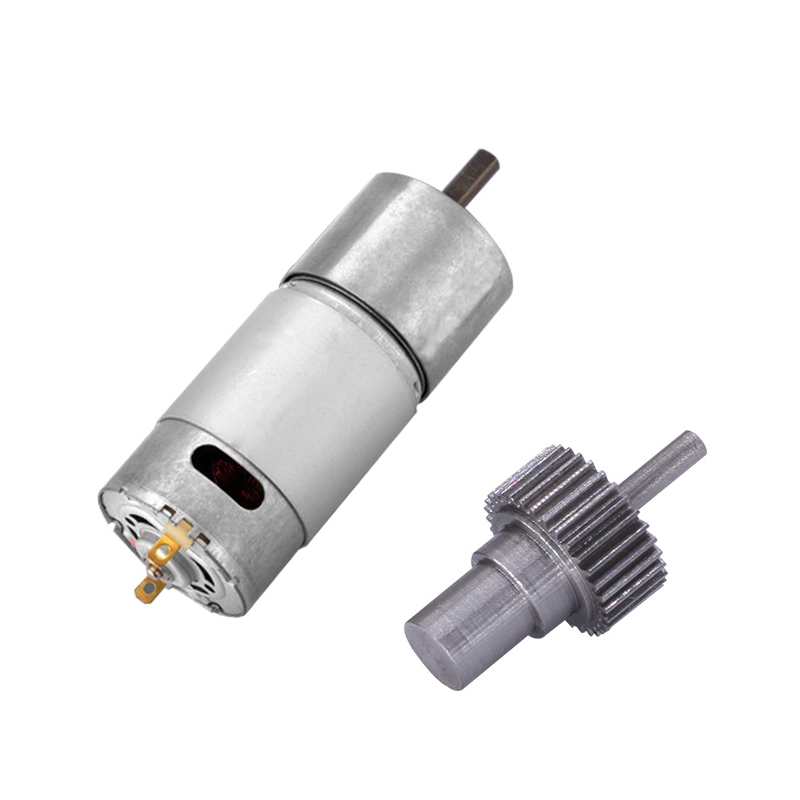

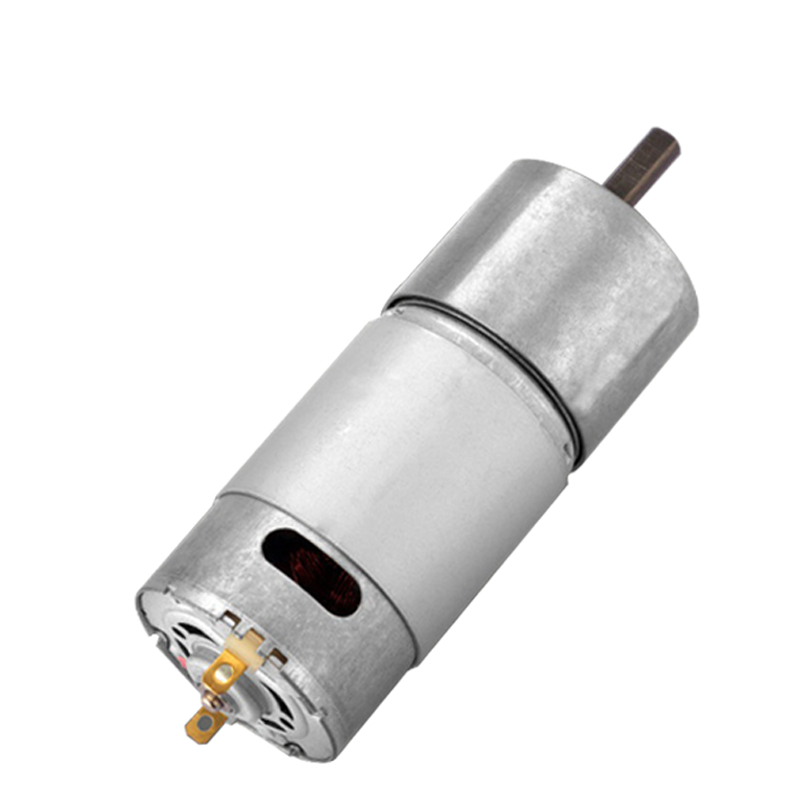

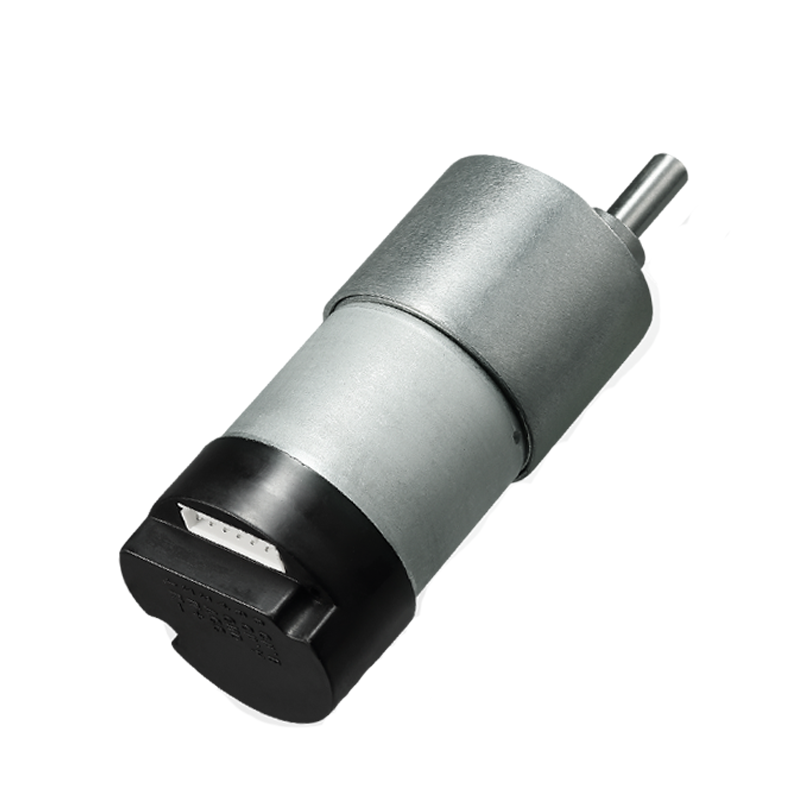

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder
GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder
GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder
1 / 3
GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder
GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder
GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder

Send Inquiry

Product Description

Product Description
GM37-555PM-EN 37mm High Quality DC Gear Motor 24V with Encoder

Main Features

  • 37mm Eccentric out shaft gearbox plus 520, 3530, 3527, 5 series motor and TEC3650, 3640 brushless motor
  • Small size DC gear motor with low speed and high torque performance
  • 37mm gear motor provides 1.0Nm torque for reliable operation
  • Suitable for small diameter, low noise, and big torque applications
  • DC Gear motors can match encoder (11ppr)
  • Multiple Reduction Ratios: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

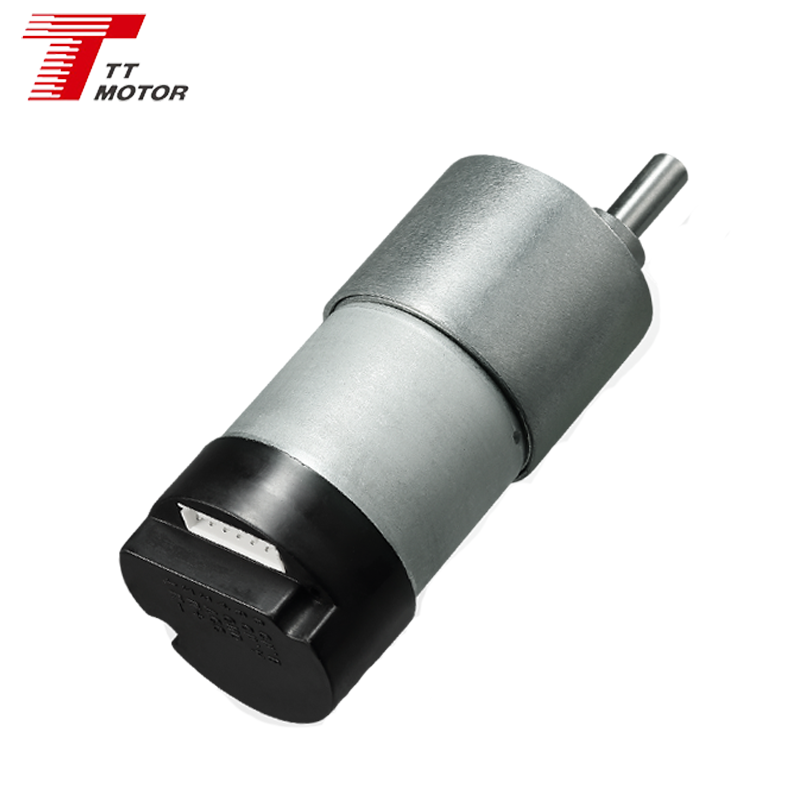

DC Gear Motor

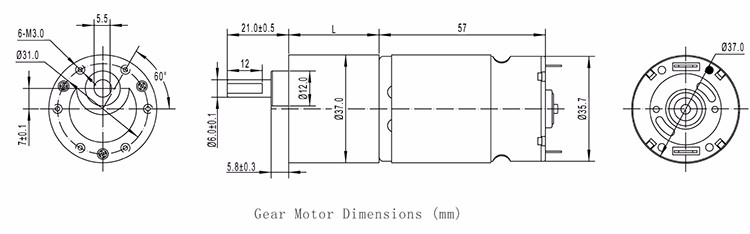

Motor Dimensions
Model Specifications: GM37-555PM
Model Rated Voltage No-load Speed Rated Torque Stall Torque
TRS-555PM-1233 12VDC 3300 r/min 200 g.cm 1150 g.cm
TRS-555PM-1260 12VDC 6000 r/min 290 g.cm 2200 g.cm
TRS-555PM-2440 24VDC 4000 r/min 200 g.cm 1000 g.cm
Related Products

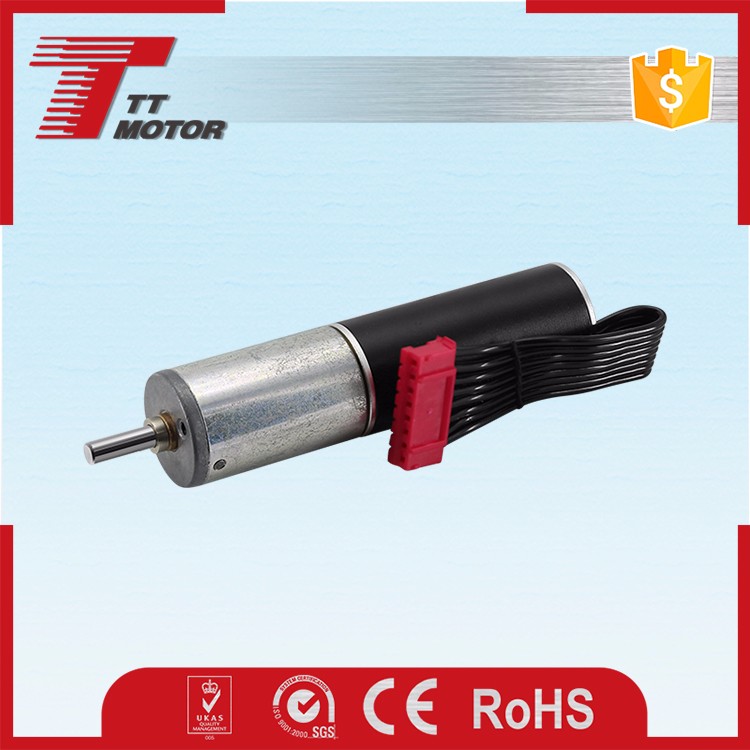

Related Product 1

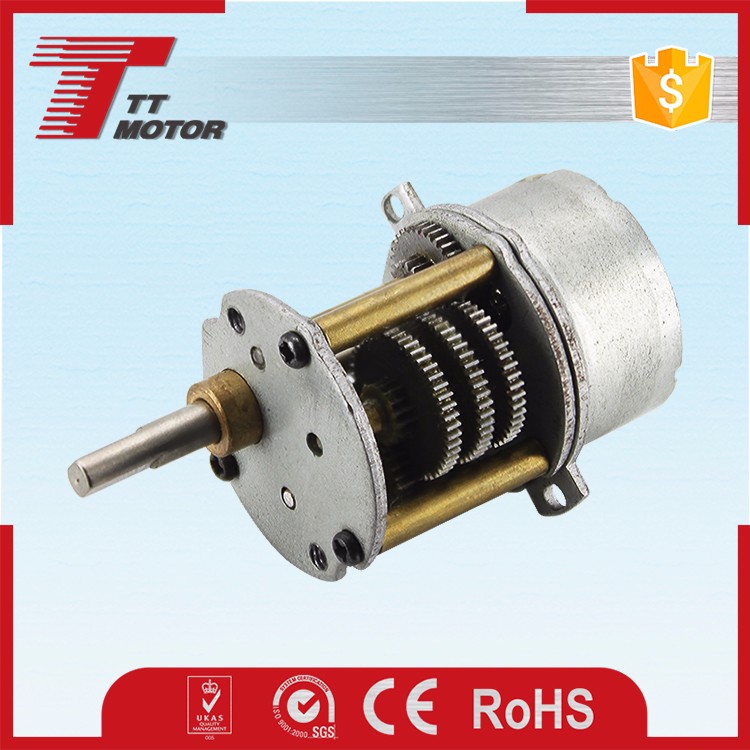

Related Product 2

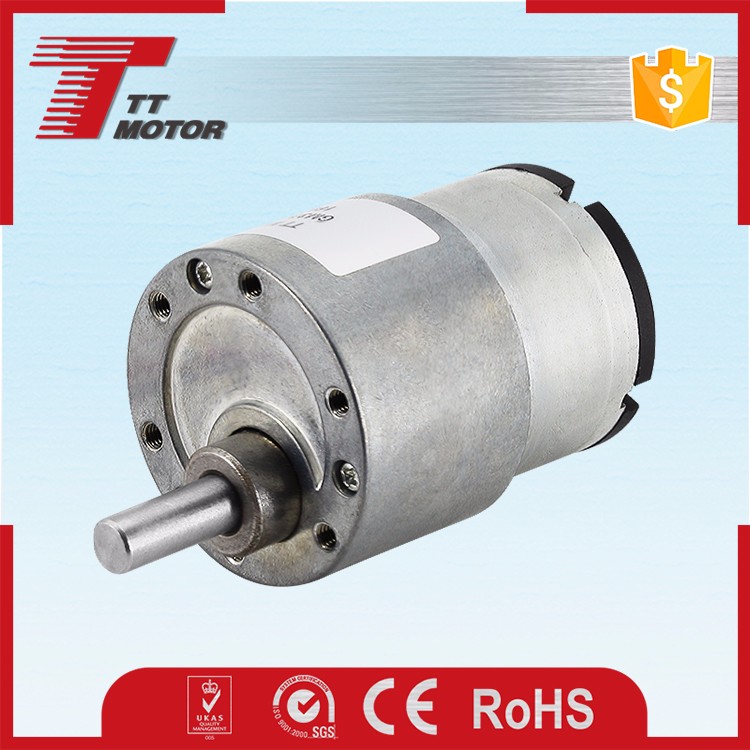

Related Product 3

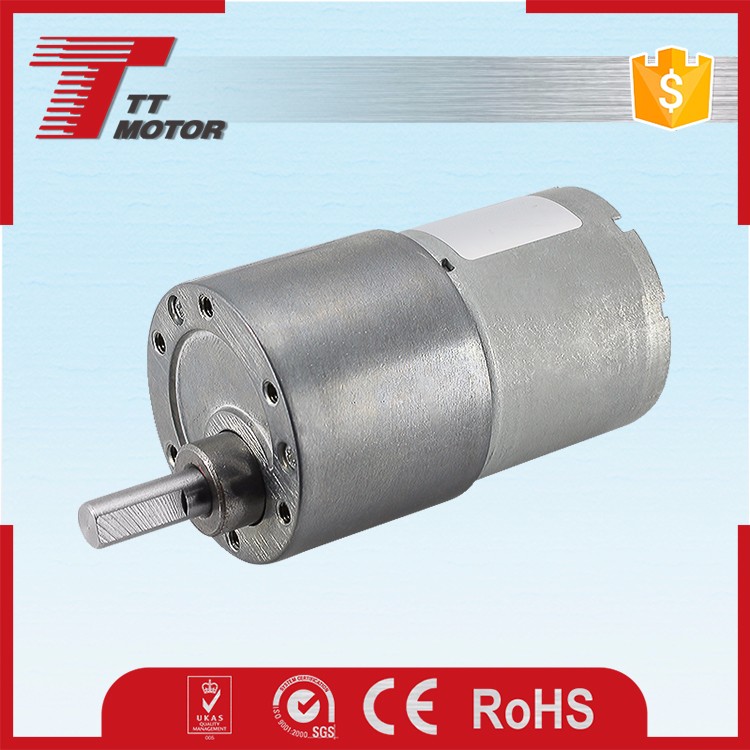

Related Product 4
Product Application

Our gear motors are ideal for various high-precision and high-torque applications:

  • Automatic door operators and energy-saving bath systems
  • Electrical controlled valves and oxygen machines
  • Optical equipment and automat cordless power tools
  • Industrial lighting and automation systems
Application Diagram
Packing & Delivery
Packing

Packaging: Single carton packing, standard 500 pieces per box.

Shipping Times:

  • DHL: 3-5 working days
  • UPS/TNT: 5-7 working days
  • FedEx: 7-9 working days
  • Sea Freight: Depends on destination country
Certifications
Certifications
Frequently Asked Questions
Q: How do I place an order for these gear motors?
A: Send us an inquiry with your requirements. We will provide a quotation, negotiate details, confirm samples, and proceed to mass production upon contract signing.
Q: Are samples available before bulk orders?
A: Yes, samples are available. Please contact us for details. The sample fee is typically refundable once a formal bulk order is placed.
Q: What is the standard lead time for production?
A: Delivery time depends on the order quantity, but it usually takes approximately 15-25 working days for production.
Q: Which shipping methods do you support?
A: We support major carriers including DHL, UPS, FedEx, TNT, EMS, and Sea Freight. We can also accommodate other shipping methods upon request.
Q: What are the accepted payment terms?
A: We accept T/T and PayPal. Generally, a 30-50% deposit is required, with the remaining balance paid before shipping.
Q: What should I do if my package is missing items?
A: Please contact our support team immediately. We will cross-reference your order with the package contents and resolve any issues promptly.
