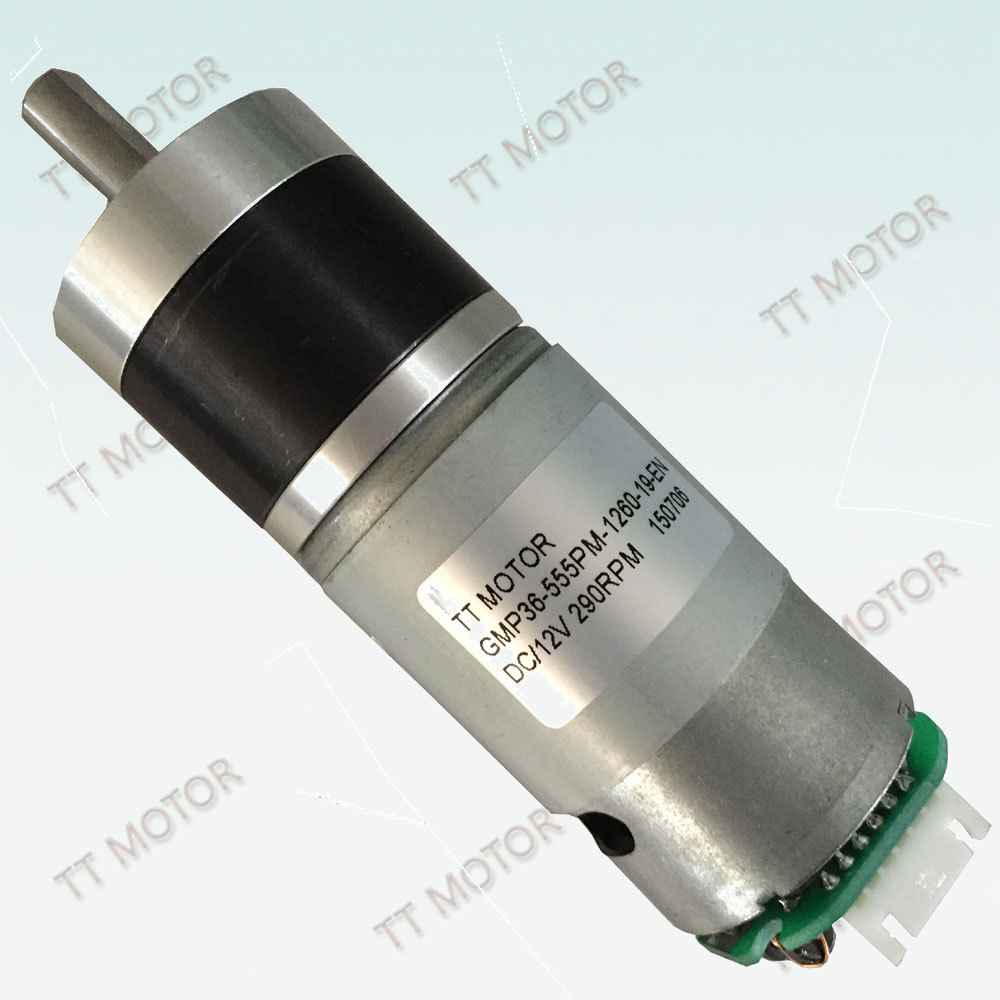

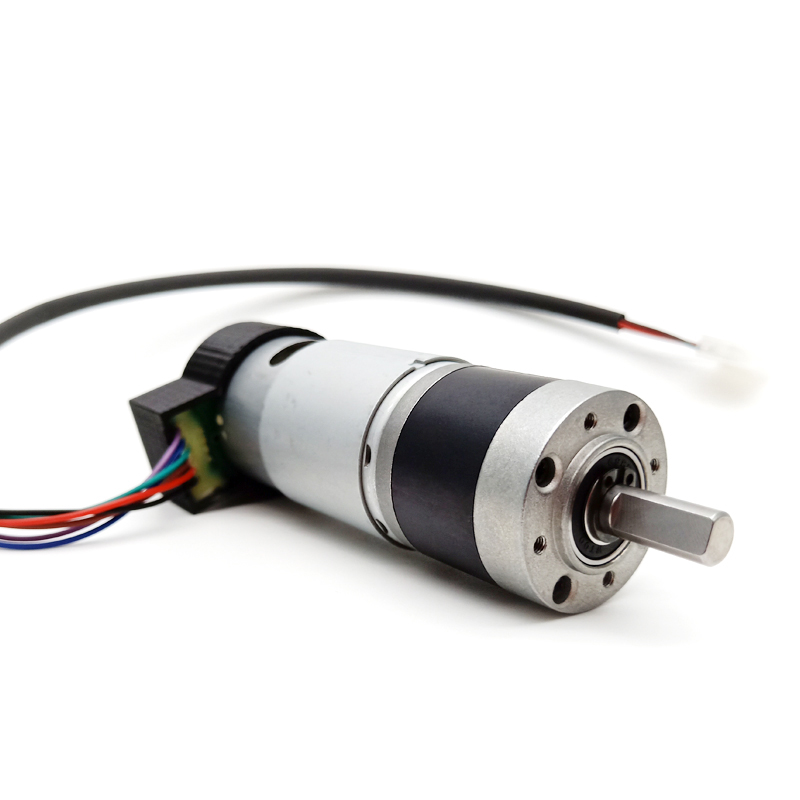

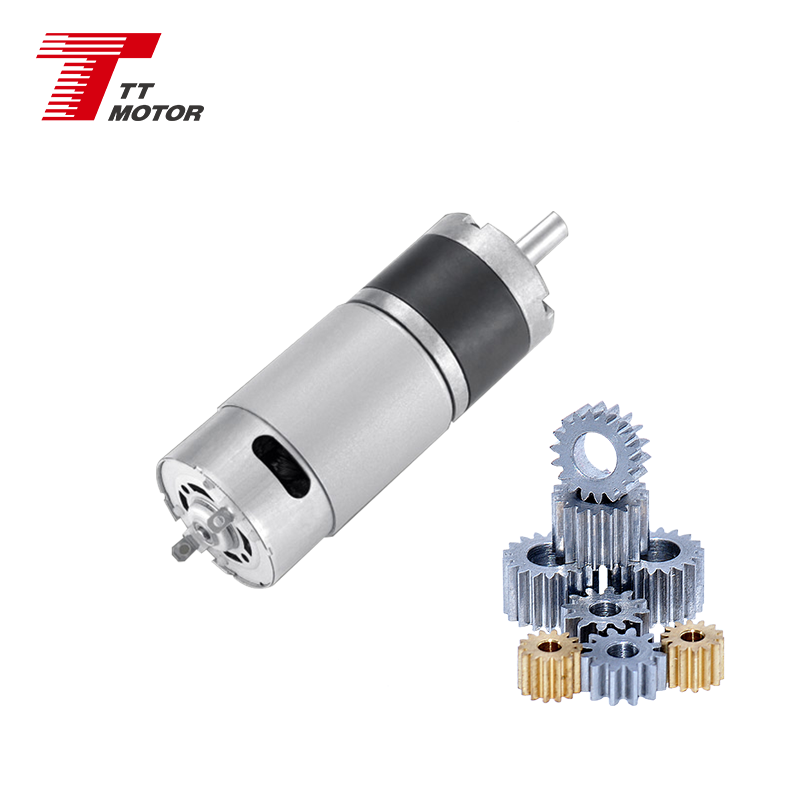

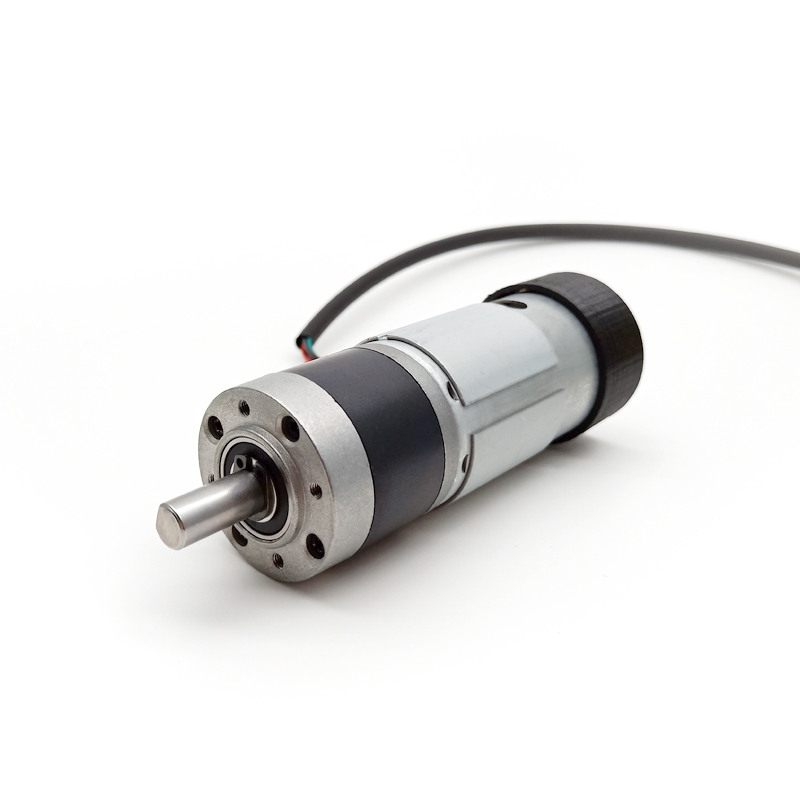

GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor with Encoder
Product Application
✅ Automatic door operators & Energy saving bath systems
✅ Electrical controlled valves & Oxygen machines
✅ Optical equipment & Cordless power tools
✅ Robots, Grass cutters & Electric curtains
✅ Camera equipment & Medical services
✅ Vending machines, Printers & ATM components

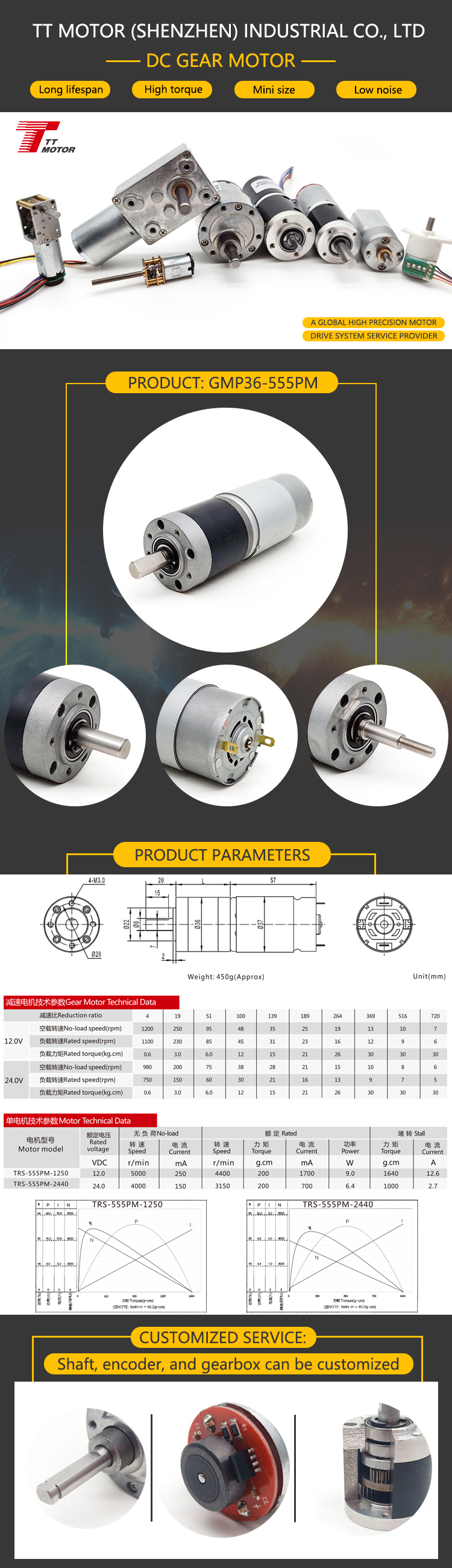

Technical Specifications (Model: GMP36-555PM)
| Motor Model |
Rated Voltage |
No-load Speed |
Rated Torque |
Output Power |
Stall Current |
| TTRS-555PM-1233 |
12VDC |
3300r/min |
200g.cm |
5.7W |
5.5A |
| TTRS-555PM-1260 |
12VDC |
6000r/min |
290g.cm |
16W |
15.0A |
| TTRS-555PM-2440 |
24VDC |
2400r/min |
200g.cm |
6.4W |
2.7A |
Main Features
📍 36mm Planetary reducer with 5 series carbon brush motor
📍 Small size with low speed and high torque (up to 3.0Nm)
📍 Low noise operation and high reliability
📍 Compatible with encoders (11pr)
📍 Wide range of reduction ratios from 4 to 720
Performance Data: GMP36-555PM-1233
| Reduction Ratio |
4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| No-load Speed (rpm) |
750 | 160 | 60 | 32 | 23 | 17 | 12 | 9 | 6 |
| Rated Torque (kg.cm) |
0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |
Quality Certifications
📜 ISO9001 Quality Management System
📜 SGS Certified
📜 National High-Tech Enterprise Standards
Packing & Delivery
Shipping Estimate
✈️ DHL: 3-5 working days
✈️ UPS / TNT: 5-7 working days
✈️ FedEx: 7-9 working days
🚢 Sea Freight: Depends on destination
Production & Quality Control
Frequently Asked Questions
Q: How do I place an order for the gear motors?
A: Send us an inquiry with your requirements. We will provide a quotation, negotiate details, confirm samples, and proceed to mass production upon contract signing.
Q: Are samples available before bulk purchasing?
A: Yes, samples are available. Please contact us for details. Sample fees are typically refunded once a formal bulk order is placed.
Q: What is the standard production and shipping time?
A: Production usually takes 15-25 working days depending on the order quantity. Shipping time varies by carrier (3-15 days).
Q: Which shipping methods do you support?
A: We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other methods can be arranged upon request.
Q: What payment methods are accepted?
A: We accept T/T, PayPal, and other major payment platforms. Usually, a 30-50% deposit is required, with the balance paid before shipping.
Q: What should I do if my package is missing products?
A: Please contact our support team immediately. We will verify the order weight and package contents to resolve any discrepancies.
