GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

1 / 5

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

Send Inquiry

Product Description

⚙️

GM25-370CA Electric 12V Encoder DC Gear Motor for Automatic Toys

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

Main Features

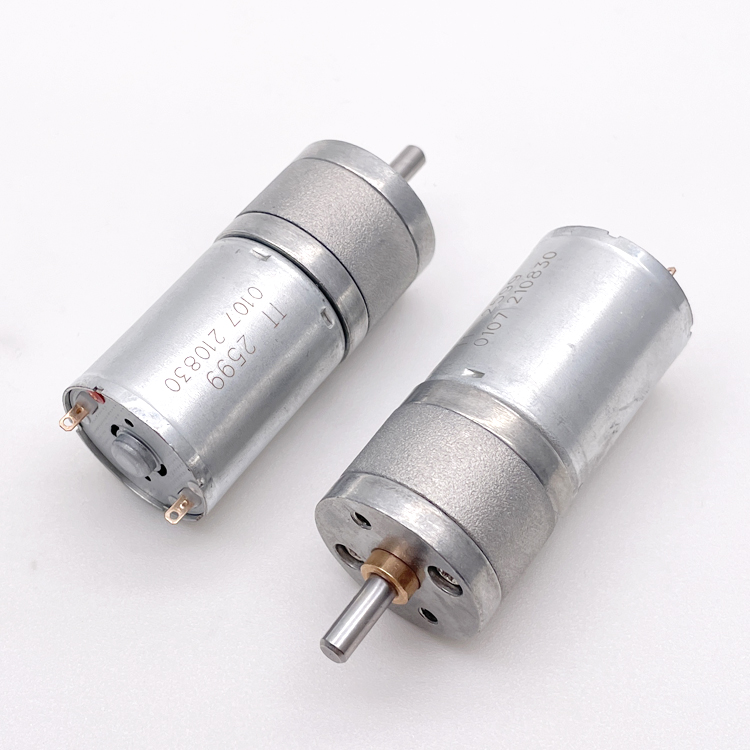

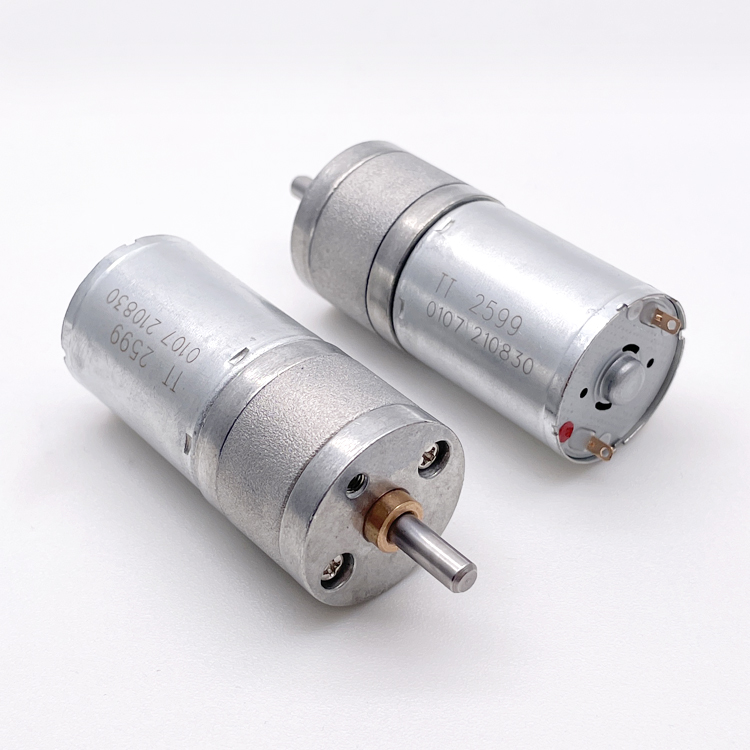

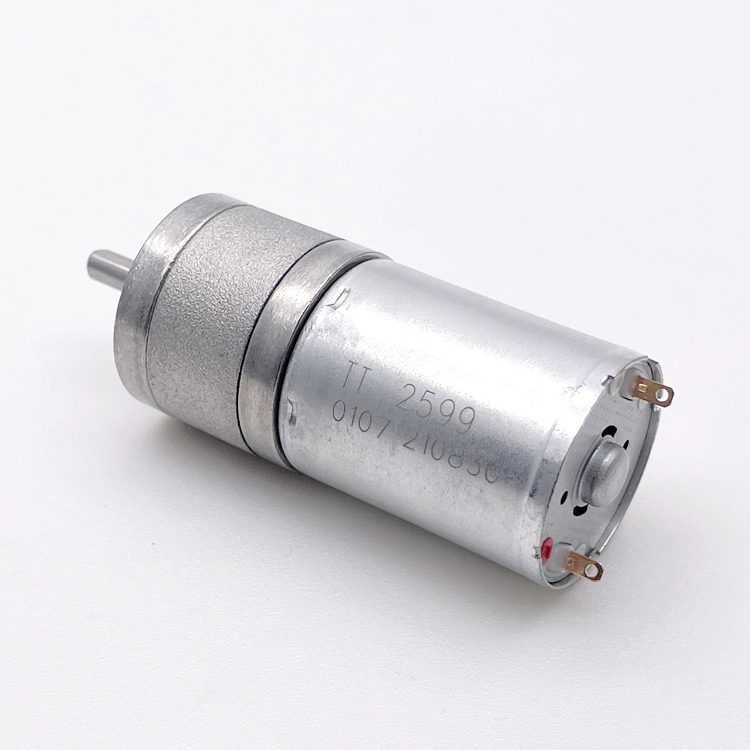

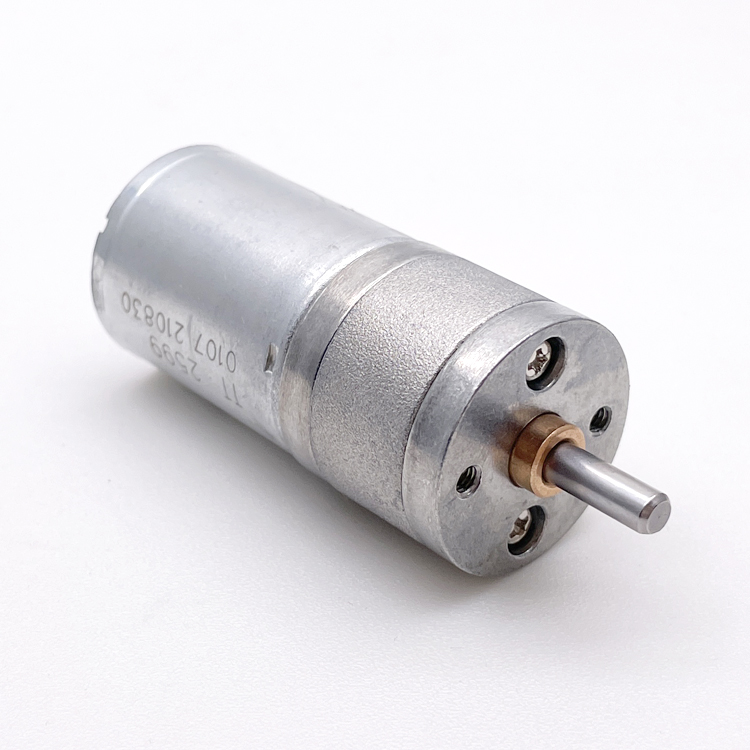

25mm gearbox plus 370 & 320 permanent magnet DC motor
Small size dc gear motor with low speed and big torque
25mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

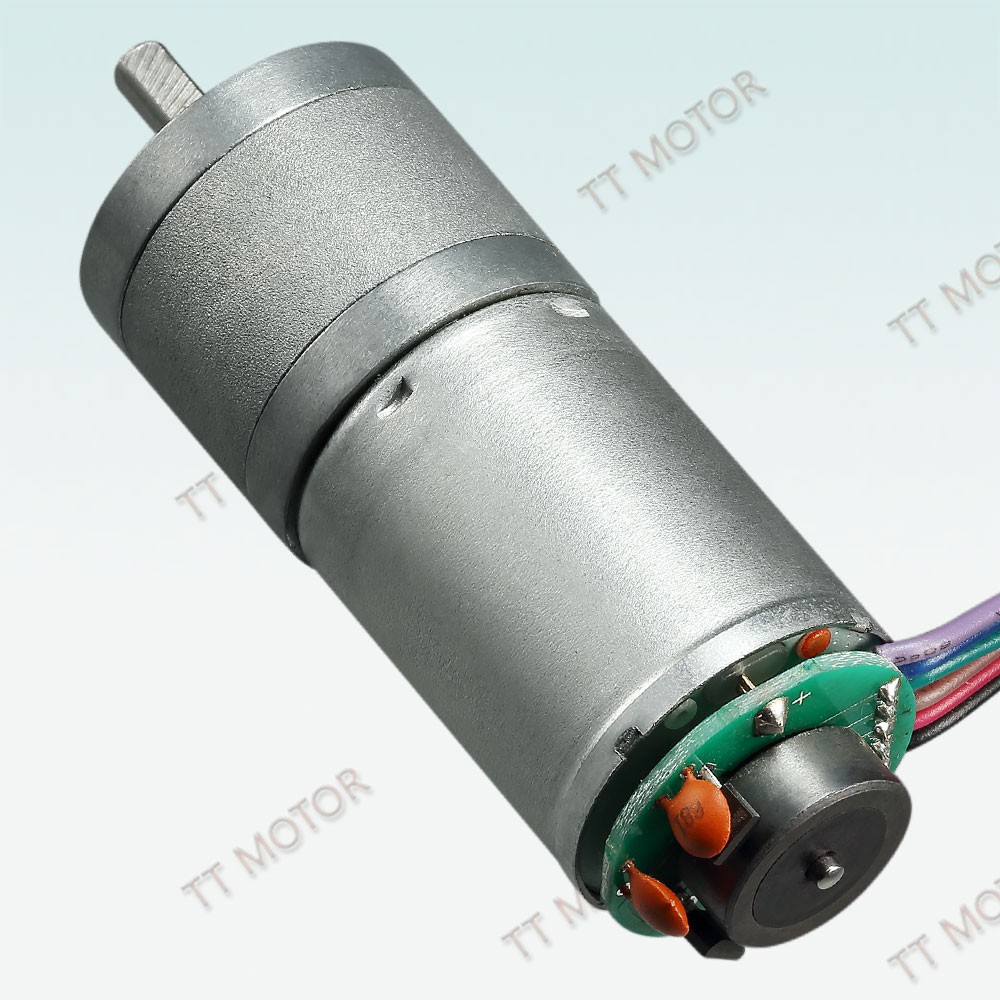

DC gear motors can match encoder, 11ppr
Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

Model Specifications: GM25-370CA

Motor Model	Rated Voltage	No-load Speed	Rated Speed	Rated Torque	Stall Torque
TRK-370CA-22170	6VDC	5600r/min	4800r/min	24g.cm	186g.cm
TRK-370CA-15360	12VDC	5600r/min	4800r/min	24g.cm	186g.cm
TRK-370CA-12560	12VDC	3700r/min	3000r/min	20g.cm	125g.cm

GM25-370CA-22170-xxx Performance Data

Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7

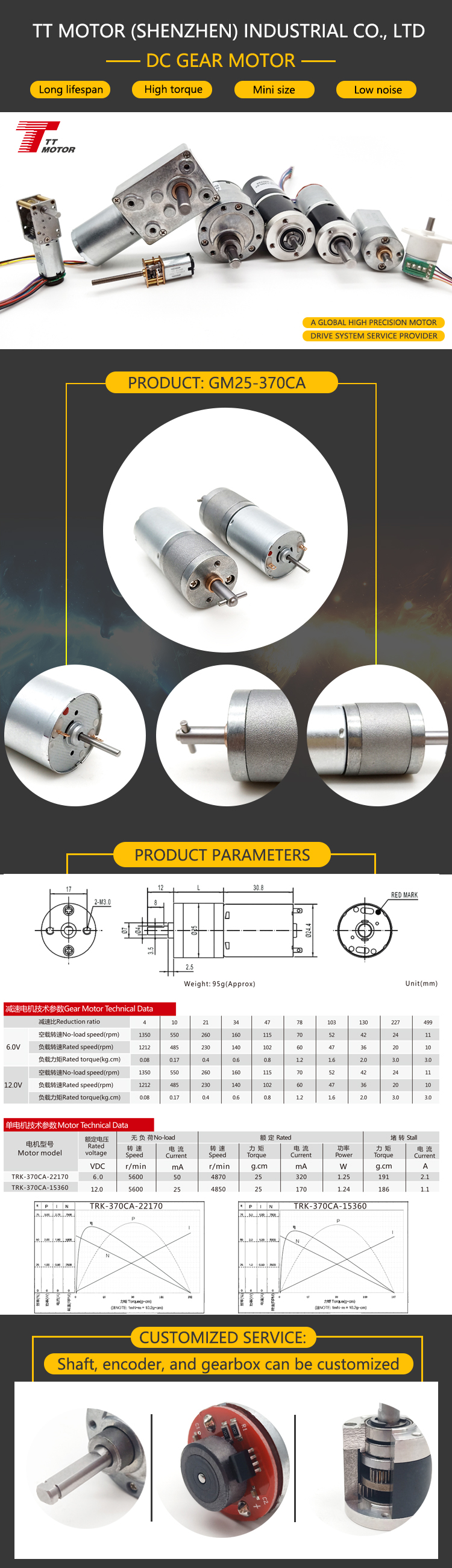

Product Visuals

Packaging & Shipping

Model	Case Pack (pcs)	Carton Size	Gross Weight
GM12-N20VA	840	41.534.518.5 CM	10.5kg

Typical Applications

Business Machines: ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.

Food and Beverage: Beverage Dispensing, Hand Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers.

Medical: Urine Analyzer, Blood Sugar Analyzer, Injector.

Lawn and Garden: Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

Certifications

Customer Reviews & Global Partners

Manufacturing Excellence

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. We aim to provide dependable and long-lasting solutions backed by years of experience, exporting 98% of our output worldwide.

Frequently Asked Questions (FAQ)

Q1: What is the gearbox size for the GM25-370CA series? A: The series features a 25mm gearbox paired with a 370 permanent magnet DC motor.

Q2: Can this gear motor be equipped with an encoder? A: Yes, these DC gear motors can match an encoder with 11ppr for precise control.

Q3: What are the available voltage options? A: The standard models support 6VDC and 12VDC rated voltages.

Q4: What is the maximum torque these motors can provide? A: Depending on the reduction ratio, these motors can provide up to 2.7 kg.cm rated torque and up to 10 kg.cm maximum momentary tolerance torque.

Q5: Are these motors suitable for quiet environments? A: Yes, they are specifically designed for applications requiring low noise and small diameter footprints.

Q6: What industries typically use the GM25-370CA motor? A: They are widely used in business machines (ATMs/Vending), medical equipment, food & beverage appliances, and lawn & garden tools.
