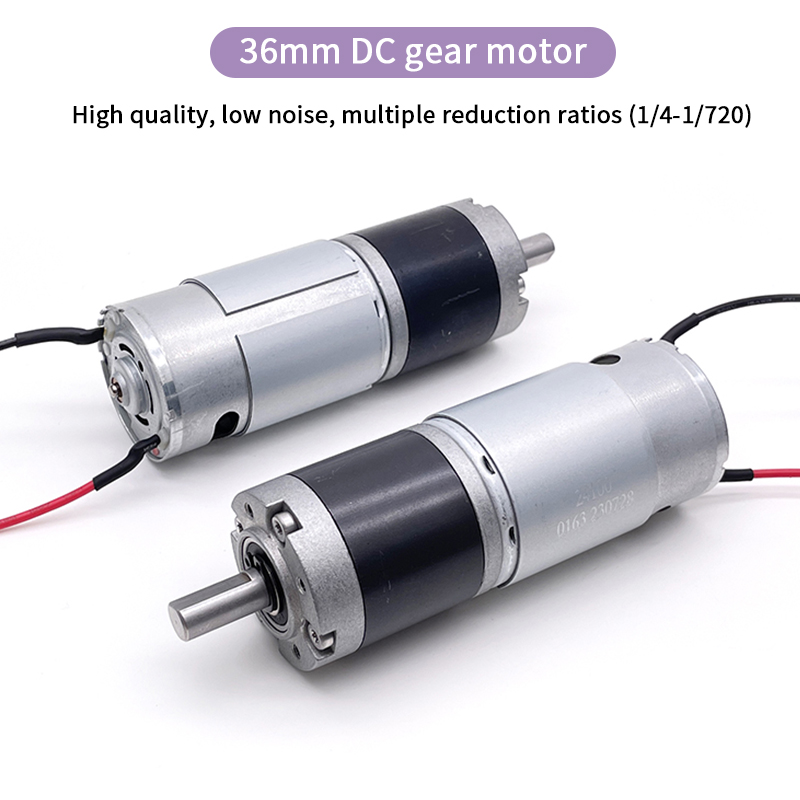

GMP36-555PM-EN 12V/24V Electric DC Geared Motor with Encoder

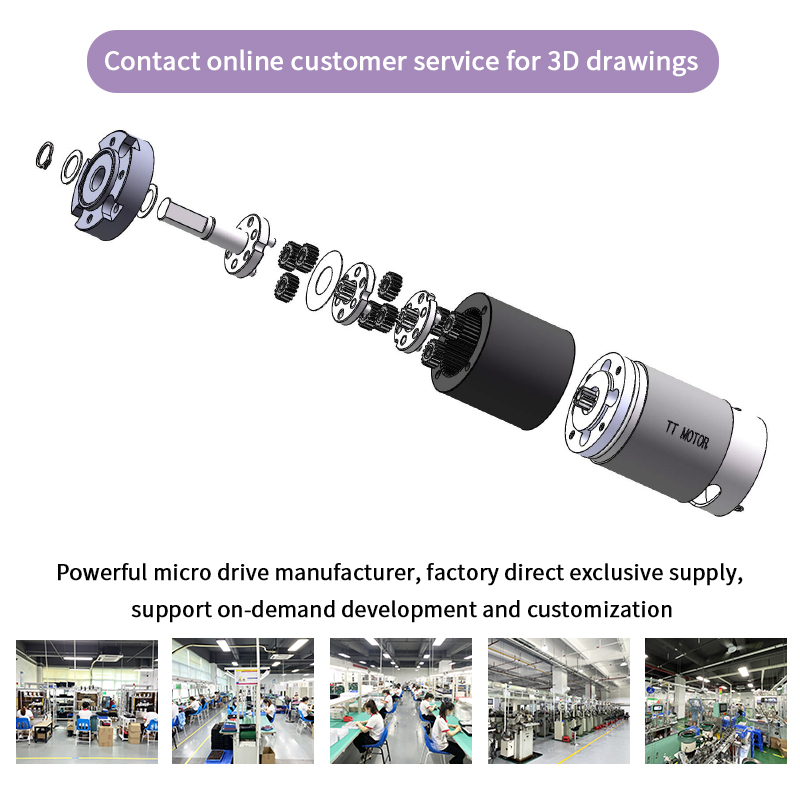

36mm Planetary reducer combined with 3530,5 series carbon brush motors or TEC3650 & 3640 brushless motors. This small size DC gear motor offers low speed and high torque reliability.
⚙️ Main Features
- 36mm gear motor providing 3.0Nm torque for high reliability.
- Suitable for small diameter, low noise, and big torque applications.

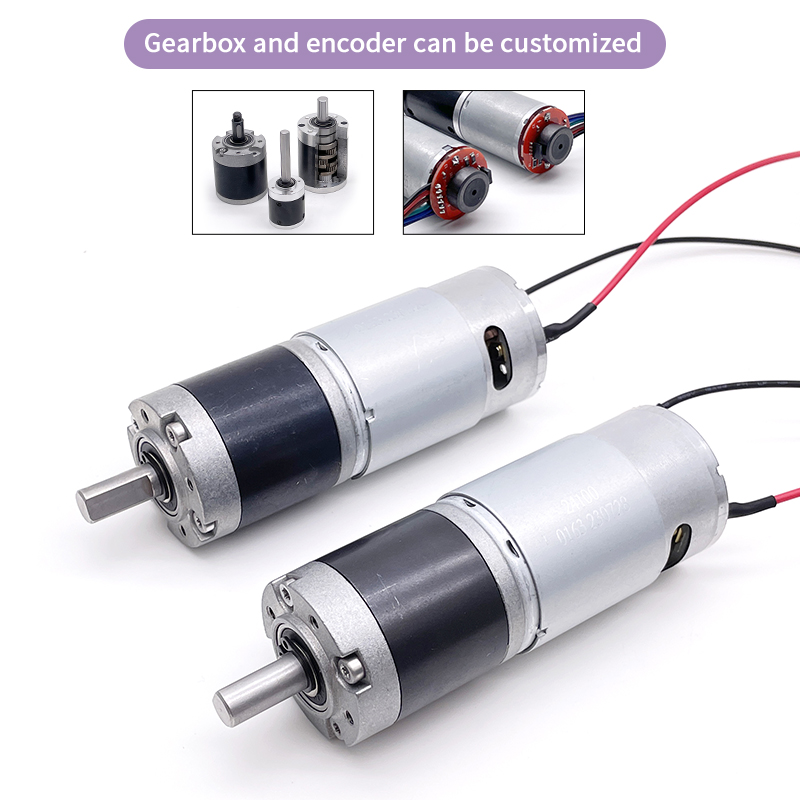

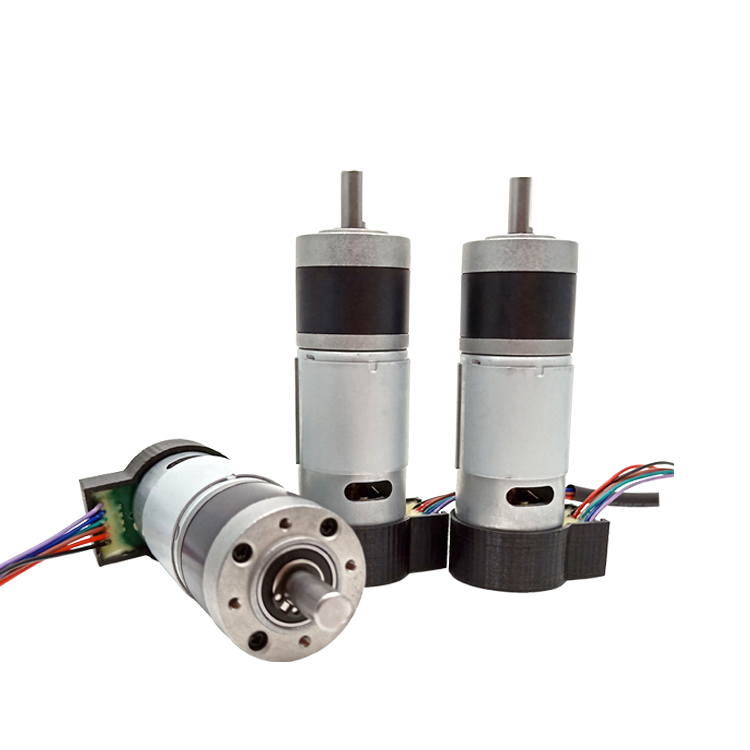

- Matches with encoder (11pr) for precision control.
- Wide range of reduction ratios: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720.

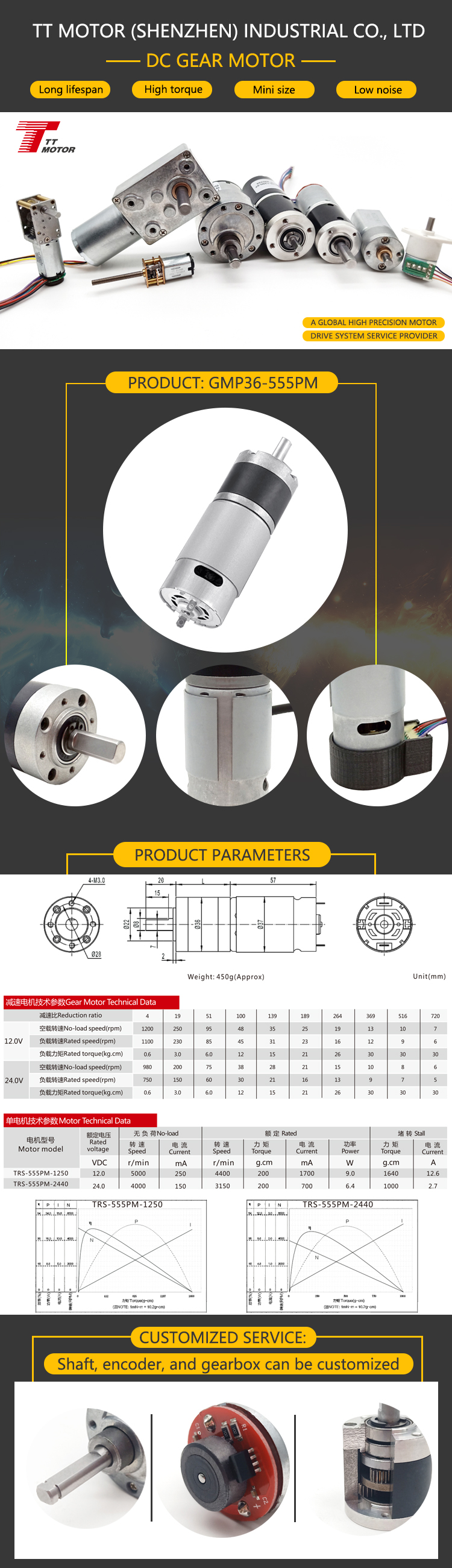

📊 Technical Specifications
| Model: Gear Motor GMP36-555PM Base Parameters |
| Motor Variant |
TTRS-555PM-1233 |
TTRS-555PM-1260 |
TTRS-555PM-2440 |
| Rated Voltage |
12VDC |
12VDC |
24VDC |
| No-load Speed |
3300r/min |
6000r/min |
2400r/min |
| Rated Torque |
200g.cm |
290g.cm |
200g.cm |
| Output Power |
5.7W |
16W |
6.4W |
| Stall Current |
5.5A |
15.0A |
2.7A |
📉 Ratio & Performance Data
| Reduction ratio |
4 | 19 | 51 | 100 | 139 | 189 | 264 | 369 | 516 |
| Length (mm) |
26 | 33.5 | 33.5 | 40.5 | 40.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| Rated Speed (rpm) - 12V |
700 | 150 | 55 | 28 | 20 | 15 | 11 | 8 | 5.5 |
| Rated Torque (kg.cm) |
0.64 | 2.7 | 6 | 12 | 15 | 21 | 26 | 30 | 30 |

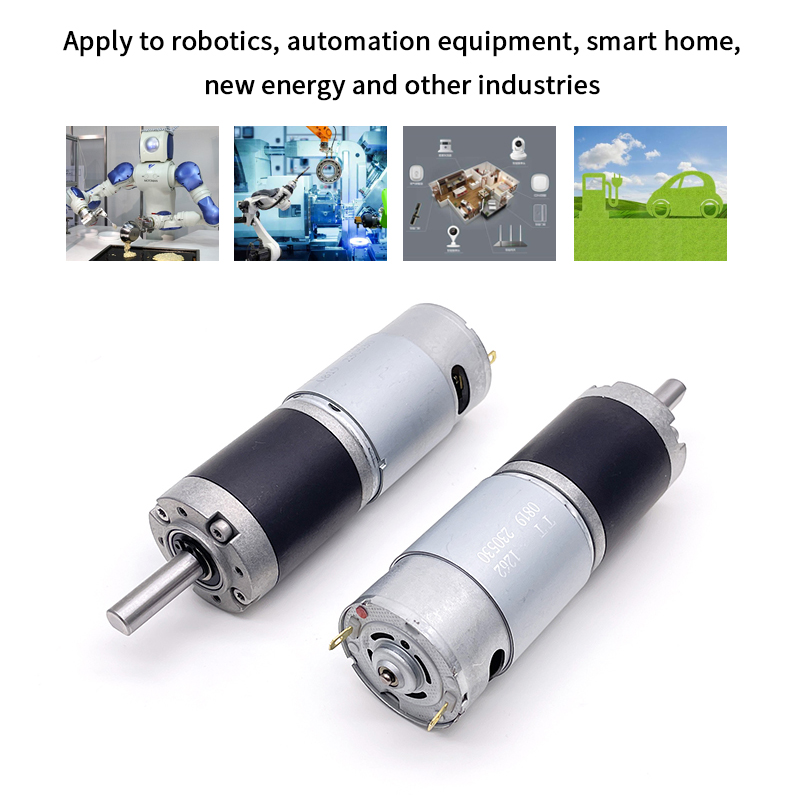

🚀 Product Applications
Ideal for: Automatic door operators, automatic energy saving baths, electrical controlled valves, robots, grass cutters, electric curtains, cameras, medical services, oxygen machines, and more.
| Industry Applications |
|---|
| Business Machines |
Vending Machines |
Printers / ATM |
Copiers & Scanners |
| Camera & Optical |
Video Systems |
Cameras |
Projectors |
| Lawn & Garden |
Lawn Mowers |
Snow Blowers |
Trimmers & Blowers |
📜 Certifications
ISO9001, SGS, National high-tech enterprises.
🏭 Manufacturing Excellence
Specializing in micro motors, gear motors, and parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances. We export 98% of our output worldwide, maintaining a reputation for honesty, dependability, and quality.
